948174 | 1 MXF FULL PORT BALL VALVE UL APPROVED, Valves, Male x Female Ball Valves, MIP X FIP 600# Full Port Ball Valve | Midland Metal Mfg. (OBSOLETE)

Brand: Midland Metal Mfg.SKU: 948174
Midland Metal Mfg. | 948174

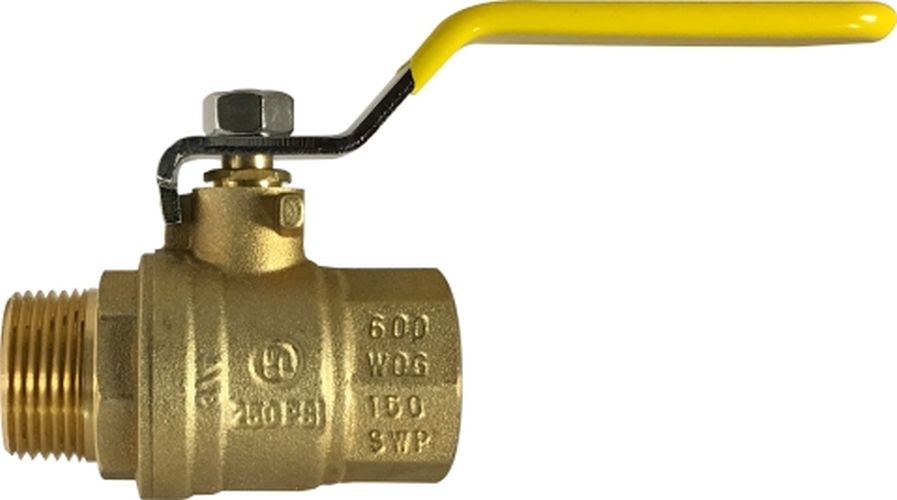

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 948174
Jump to: Overview & Specifications Reviews

Overview Details for 948174

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

1 MXF FULL PORT BALL VALVE UL APPROVED, Valves, Male x Female Ball Valves, MIP X FIP 600# Full Port Ball Valve

Specifications

Item Number 948174
Brand Midland Metal Mfg.
Additional Information 1-11-1/2 Thread Size; 0.113 lb Weight
Ball Material Brass
Body Material Brass
Category Valves
Connection Type MPT x FPT
Description MIP X FIP 600# Full Port Ball Valve
Dimensions 3 in L
Domestic/Import Import
Handle Material Carbon Steel
Inlet to Outlet Length 3 in
Lead-Free/Contains Lead Contains Lead
Material Brass
Nominal Size 1 in
Operator Type 1/4 Turn Handle
Packing Material PTFE
Port Type Full
Pressure Rating 600 psi WOG
Seal Material PTFE
Seat Material PTFE
Section Male x Female Ball Valves
Shape Valve
Stem Material Brass
Temperature Rating -20 to 300 deg F
Top to Inlet Center 2.579 in
Trim Material Brass Impacted Nut/Steel Stem Nut
