948173L | 3/4 LOCKING HNDL MALE X FEMALE BALLVALVE, Valves, Male x Female Ball Valves, Male x Female Locking Handle ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 948173L

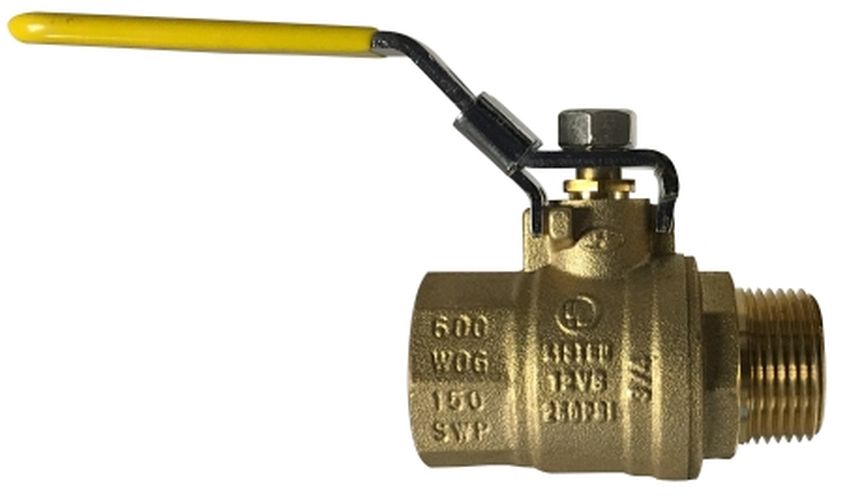

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 948173L

3/4 LOCKING HNDL MALE X FEMALE BALLVALVE, Valves, Male x Female Ball Valves, Male x Female Locking Handle ball Valve

Item Number	948173L
Brand	Midland Metal Mfg.
Additional Information	3/4-14 Thread Size; 0.780 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	MPT x FPT
Description	Male x Female Locking Handle ball Valve
Dimensions	2.618 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	2.618 in
Lead-Free/Contains Lead	Contains Lead
Material	Forged Brass
Nominal Size	3/4 in
Operator Type	Locking Handle
Packing Material	PTFE
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Male x Female Ball Valves
Shape	Male x female
Stem Material	Brass
Temperature Rating	-20 to 300 deg F
Top to Inlet Center	2.106 in
Trim Material	Brass Impacted Nut/Steel Stem Nut
