948141 | 1/4 SAFETY EXHAUST BALL VALVE, Valves, Misc. Valves, Safety Exhaust Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 948141

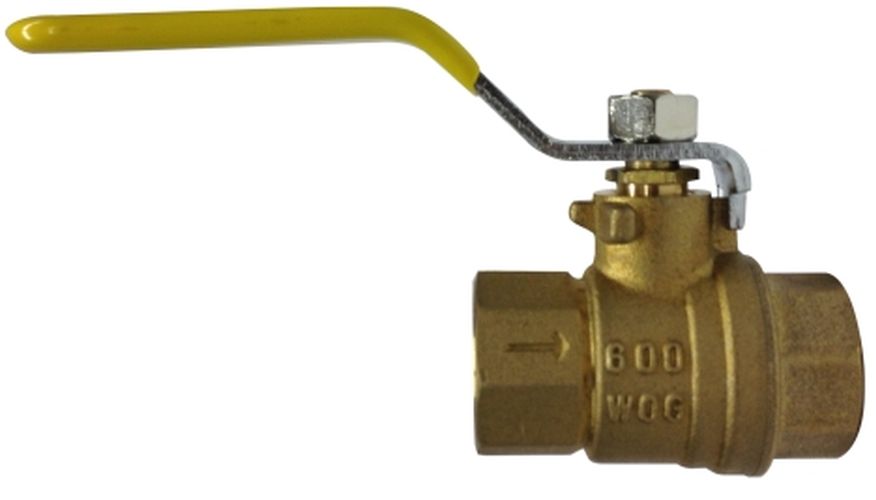

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 948141

1/4 SAFETY EXHAUST BALL VALVE, Valves, Misc. Valves, Safety Exhaust Ball Valve

Item Number	948141
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Pressure; 1/4-18 Thread Size; 0.331 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	FPT x FPT
Description	Safety Exhaust Ball Valve
Dimensions	1.756 in L
Domestic/Import	Import
Handle Material	Nickel-Plated Steel
Inlet to Outlet Length	1.756 in
Material	Forged Brass
Nominal Size	1/4 in
Operator Type	Locking Lever Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	400 psi WOG
Seat Material	PTFE
Section	Misc. Valves
Stem Material	Brass
Top to Inlet Center	1.88 in
Trim Material	Brass Packing Nut/Nickel-Plated Steel Stem Nut
