947126 | 1 FIP X 3/4 MIP 3 WAY VENTED BRASS BV, Valves, 2017 Valves, 3- Way Wye Vented and Unvented Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 947126

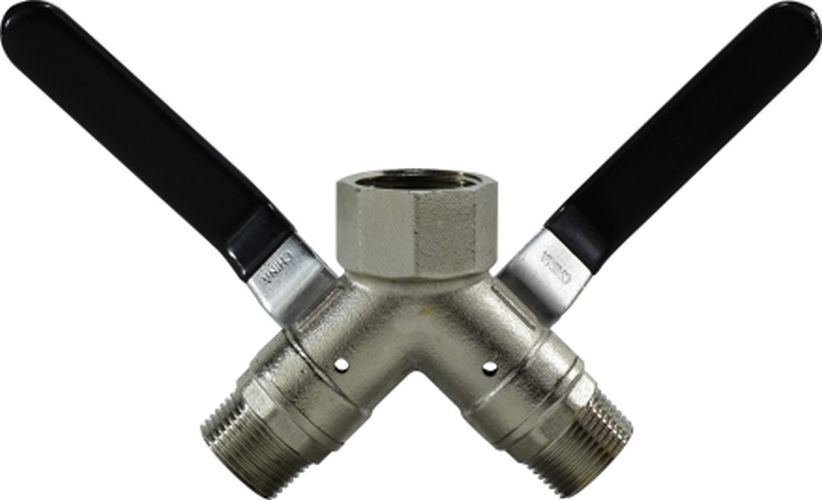

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 947126

1 FIP X 3/4 MIP 3 WAY VENTED BRASS BV, Valves, 2017 Valves, 3- Way Wye Vented and Unvented Ball Valve

Item Number	947126
Brand	Midland Metal Mfg.
Additional Information	1-11-1/2 x 3/4-14 Thread Size; 29 inHg Vacuum Rated; 1.480 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	FIP x MIP
Description	3- Way Wye Vented and Unvented Ball Valve
Domestic/Import	Import
Finish	Nickel-Plated
Handle Material	Stainless Steel
Material	Brass
Nominal Size	1 x 3/4 in
Number of Ports/Ways	3-Way
Operator Type	Lever Handle
Port Type	Full
Pressure Rating	250 psi
Seal Material	PTFE
Seat Material	PTFE
Section	2017 Valves
Shape	Wye shaped with ball valve on
Stem Material	Brass
Temperature Rating	-40 to 365 deg F
Top to Inlet Center	2.05 in
Trim Material	FKM O-Ring
