941128NP | 2 NP UL FM CSA SS TRIM FP BV LKG HDLE | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 941128NP
Midland Metal Mfg. | 941128NP

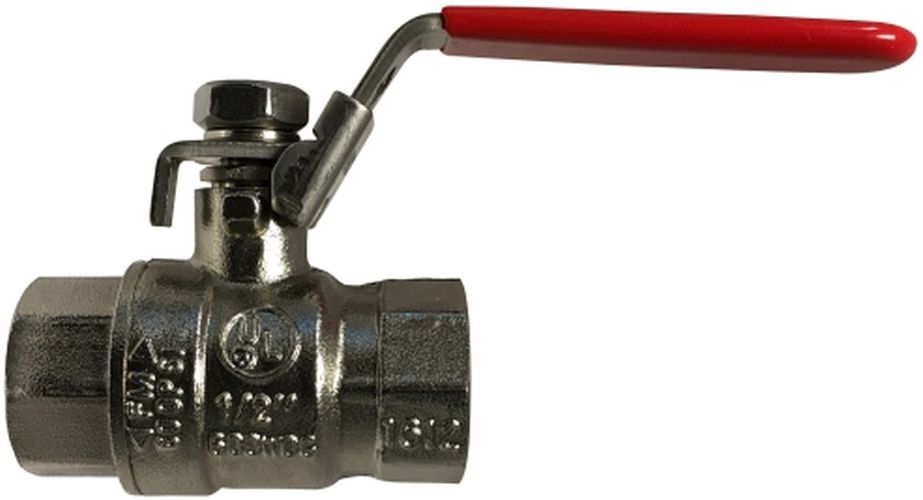

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 941128NP

Overview Details for 941128NP

2 NP UL FM CSA SS TRIM FP BV LKG HDLE, Valves, 2017 Valves, Workhorse Ball Valve Has Everything

Specifications

Item Number 941128NP
Brand Midland Metal Mfg.
Additional Information 150 psi WSP Service Pressure; 2-11-1/2 Thread Size; 29 inHg Vacuum Services; 3.480 lb Weight
Ball Material Stainless Steel
Body Material Forged Brass
Category Valves
Connection Type FPT x FPT
Description Workhorse Ball Valve Has Everything
Dimensions 4.33 in L
Domestic/Import Import
Finish Nickel-Plated
Flow Coefficient (Cv) 200.35 Cv
Handle Material Stainless Steel
Inlet to Outlet Length 4.33 in
Material N/P Brass Body
Nominal Size 2 in
Operator Type Locking Handle
Packing Material PTFE
Port Type Full
Pressure Rating 600 psi WOG
Seat Material PTFE
Section 2017 Valves
Shape Full Port
Stem Material Stainless Steel
Temperature Rating -20 to 300 deg F
Top to Inlet Center 3.48 in
Trim Material Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring
