940462 | 3/4 FIP 3-WAY BALL VLV, Valves, 3 Way Ball Valves, Side Outlet 3 Way Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940462

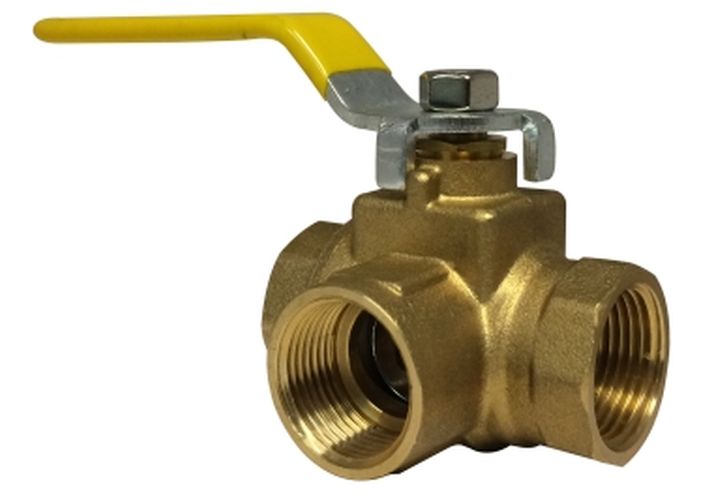

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940462

3/4 FIP 3-WAY BALL VLV, Valves, 3 Way Ball Valves, Side Outlet 3 Way Ball Valve

Item Number	940462
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Pressure; 3/4-14 Thread Size; 0.780 lb Weight
Ball Material	Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FPT
Description	Side Outlet 3 Way Ball Valve
Dimensions	4.31 in L
Domestic/Import	Import
Handle Material	Steel
Material	Brass
Nominal Size	3/4 in
Number of Ports/Ways	3-Way
Operator Type	90 deg Rotation Lever Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	3 Way Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	0 to 230 deg F
Top to Inlet Center	2.16 in
Trim Material	Brass Impacted Nut/Steel Stem Nut/NBR O-Ring
