940179 | 2 1/2" 400 WOG FULL PORT VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940179

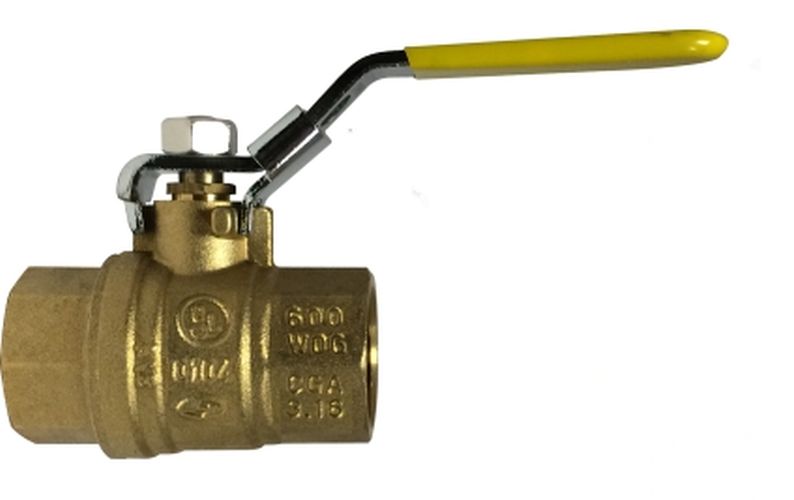

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940179

2 1/2" 400 WOG FULL PORT VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM

Item Number	940179
Brand	Midland Metal Mfg.
Additional Information	2-1/2-8 Thread Size; 7.610 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FNPT x FNPT
Description	Full Port Ball Valves 600 WOG CSA UL FM
Dimensions	5.38 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	5.38 in
Material	Brass
Nominal Size	2-1/2 in
Operator Type	Handle
Port Type	Full
Pressure Rating	400 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Full Port Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-22 to 302 deg F
Top to Inlet Center	4.76 in
Trim Material	Brass Gland/Steel Nut and Spring Inseat
