940176 | 1 1/4" 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940176

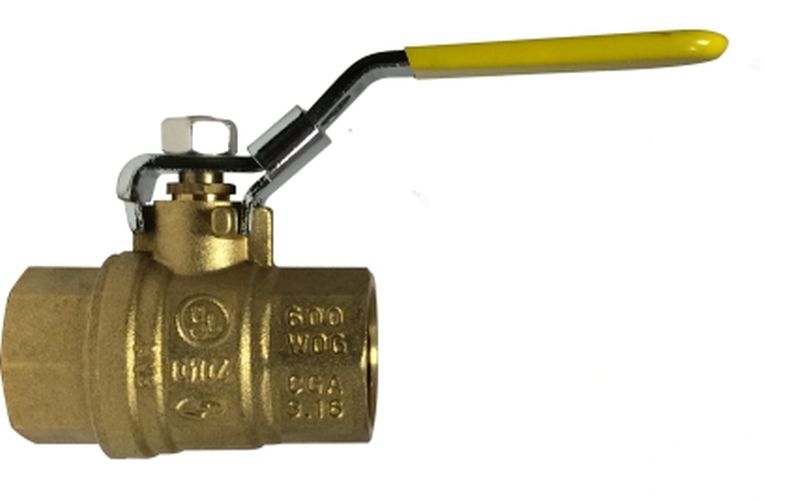

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940176

1 1/4" 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM

Item Number	940176
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Saturated Steam Pressure; 1-1/4-11-1/2 Thread Size; 1.500 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FNPT x FNPT
Description	Full Port Ball Valves 600 WOG CSA UL FM
Dimensions	3.3 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	3.3 in
Material	Brass
Nominal Size	1-1/4 in
Operator Type	Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Full Port Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-22 to 302 deg F
Top to Inlet Center	3.14 in
Trim Material	Brass Gland/Steel Nut and Spring Inseat
