940174LF | 3/4 Leadfree FXF Full Port Ball Valve, Lead Free, Lead Free Valves, Lead Free Ball Valves AGA UL FM IPS and SWT | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940174LF

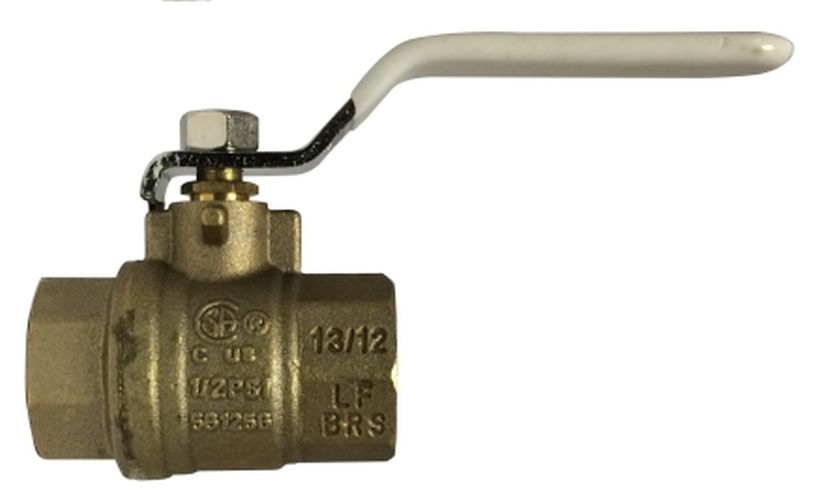

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940174LF

3/4 Leadfree FXF Full Port Ball Valve, Lead Free, Lead Free Valves, Lead Free Ball Valves AGA UL FM IPS and SWT

Item Number	940174LF
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Saturated Steam Pressure; 3 /4-1 4 Thread Size; 0.694 lb Weight
Ball Material	Lead-Free Brass
Body Material	Lead-Free Forged Brass
Category	Lead Free
Connection Type	FPT x FPT
Description	Lead Free Ball Valves AGA UL FM IPS and SWT
Dimensions	2.362 in L
Domestic/Import	Import
Handle Material	Nickel-Plated Steel
Inlet to Outlet Length	2.362 in
Lead-Free/Contains Lead	Lead-Free
Material	Lead Free
Nominal Size	3/4 in
Operator Type	Lever Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Lead Free Valves
Shape	Ball Valve
Stem Material	Brass
Temperature Rating	-22 to 302 deg F
Top to Inlet Center	2.26 in
Trim Material	Brass-Plated Steel Stem Nut
