940173L | 1/2 BRASS BALL VALVE W/LOCK HDL, Valves, Full Port Ball Valves, Locking Handle Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940173L

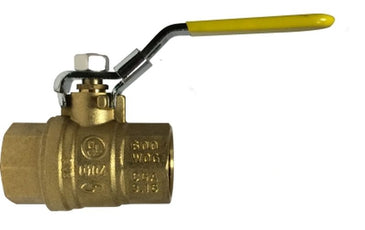

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940173L

1/2 BRASS BALL VALVE W/LOCK HDL, Valves, Full Port Ball Valves, Locking Handle Ball Valve

Item Number	940173L
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Saturated Steam Pressure; 1/2-14 Thread Size; 0.496 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FPT x FPT
Description	Locking Handle Ball Valve
Dimensions	2.23 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	2.23 in
Material	Brass
Nominal Size	1/2 in
Operator Type	Locking Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Full Port Ball Valves
Shape	Ball Valve
Stem Material	Brass
Temperature Rating	-22 to 302 deg F
Top to Inlet Center	2.09 in
Trim Material	Brass Gland/Steel Nut and Spring Inseat
