940171 | 1/4IN 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940171

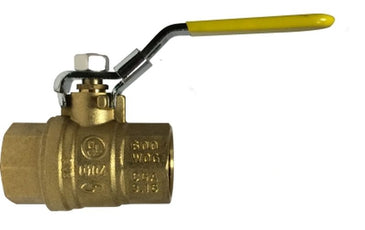

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940171

1/4IN 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM

Anderson alternative: 40024-04

Item Number	940171
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Saturated Steam Pressure; 1/4-18 Thread Size; 0.340 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FNPT x FNPT
Description	Full Port Ball Valves 600 WOG CSA UL FM
Dimensions	1-3/4 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	1-3/4 in
Material	Brass
Nominal Size	1/4 in
Operator Type	Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Full Port Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-22 to 302 deg F
Top to Inlet Center	1.92 in
Trim Material	Brass Gland/Steel Nut and Spring Inseat
