940123 | 1/2IPS 3-WAY BALL VALVE, Valves, 3 Way Ball Valves, Bottom Outlet 3 Way Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940123

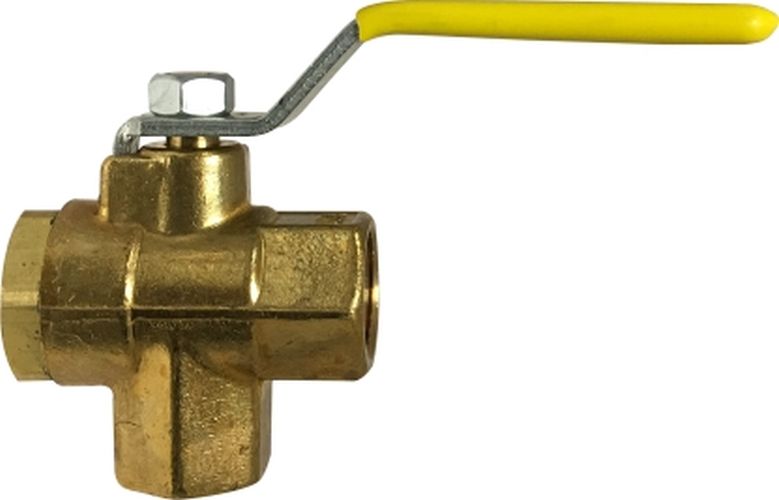

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 940123

1/2IPS 3-WAY BALL VALVE, Valves, 3 Way Ball Valves, Bottom Outlet 3 Way Ball Valve

Item Number	940123
Brand	Midland Metal Mfg.
Additional Information	1/2-14 Thread Size; 1.000 lb Weight
Ball Material	Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FPT
Description	Bottom Outlet 3 Way Ball Valve
Dimensions	2.25 in L x 3.12 in H
Domestic/Import	Domestic
Flow Coefficient (Cv)	5.5 Cv
Handle Material	Steel
Material	Brass
Nominal Size	1/2 in
Number of Ports/Ways	3-Way
Operator Type	90 deg Rotation Lever Handle
Pressure Rating	400 psi Bottom Port; 100 psi Side Port
Seal Material	FKM
Seat Material	PTFE
Section	3 Way Ball Valves
Shape	Valve
Stem Material	Brass
Trim Material	Brass Impacted Nut/Steel Stem Nut/NBR O-Ring
