6815NWO66 | 9/16-18X9/16-18 (F ORB X M ORB 90 EL), Hydraulic, Steel SAE O-Ring Fittings, Female O-Ring to Male O-Ring Elbow | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 6815NWO66

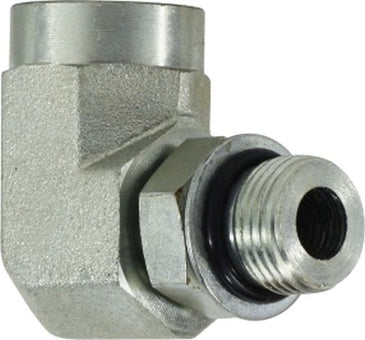

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 6815NWO66

9/16-18X9/16-18 (F ORB X M ORB 90 EL), Hydraulic, Steel SAE O-Ring Fittings, Female O-Ring to Male O-Ring Elbow

Item Number	6815NWO66
Brand	Midland Metal Mfg.
Additional Information	0.270 lb Weight
Category	Hydraulic
Connection Size 1	9/16 in
Connection Size 2	9/16 in
Connection Type 1	Female ORB
Connection Type 2	Male ORB
Connection Type	Female ORB\|Male ORB
Description	Female O-Ring to Male O-Ring Elbow
Fitting Type	90 deg Elbow
Material Construction	Steel
Material	Steel
Maximum Operating Pressure	3600 psi
Operating Temperature	375 deg F
Section	Steel SAE O-Ring Fittings
Shape	90 degree elbow
Thread Size	9/16-18
