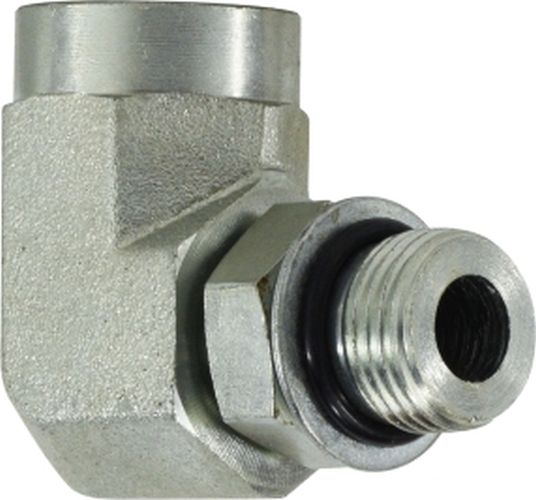

6815NWO1010 | 7/8-14 (F ORB X M ORB 90 EL)B, Hydraulic, Steel SAE O-Ring Fittings, Female O-Ring to Male O-Ring Elbow | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 6815NWO1010

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 6815NWO1010

7/8-14 (F ORB X M ORB 90 EL)B, Hydraulic, Steel SAE O-Ring Fittings, Female O-Ring to Male O-Ring Elbow

Item Number	6815NWO1010
Brand	Midland Metal Mfg.
Additional Information	10 Dash Number; 5/8 in Tube
Category	Hydraulic
Connection Size 1	7/8 in
Connection Size 2	7/8 in
Connection Type 1	Female ORB
Connection Type 2	Male ORB
Connection Type	Female ORB\|Male ORB
Description	Female O-Ring to Male O-Ring Elbow
Fitting Type	90 deg Elbow
Material Construction	Steel
Material	Steel
Maximum Operating Pressure	2900 psi
Operating Temperature	375 deg F
Section	Steel SAE O-Ring Fittings
Shape	90 degree elbow
Thread Size	7/8-14
