6809NWO88 | 3/4-16X3/4-16 (M ORB X F JIC SWV 90 ELB), Hydraulic, Steel SAE O-Ring Fittings, 37 Degree JIC Swivel Nut to O-Ring Elbow | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 6809NWO88

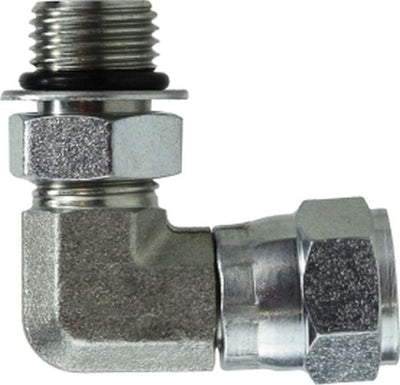

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 6809NWO88

3/4-16X3/4-16 (M ORB X F JIC SWV 90 ELB), Hydraulic, Steel SAE O-Ring Fittings, 37 Degree JIC Swivel Nut to O-Ring Elbow

Item Number	6809NWO88
Brand	Midland Metal Mfg.
Additional Information	4500 psi Non-Adjustable
Category	Hydraulic
Connection Size 1	1/2 in
Connection Size 2	1/2 in
Connection Type 1	Male ORB
Connection Type 2	Female 37 deg JIC Swivel
Connection Type	Male ORB\|Female JIC Swivel
Description	37 Degree JIC Swivel Nut to O-Ring Elbow
Fitting Type	90 deg Elbow
Material Construction	Steel
Material	Steel
Maximum Operating Pressure	3600 psi
Operating Temperature	375 deg F
Section	Steel SAE O-Ring Fittings
Shape	90 degree elbow
Thread Size	3/4-16
