6802NWO810 | 3/4-16X7/8-14 (M JIC X M ORB 45 ELB), Hydraulic, Steel SAE O-Ring Fittings, JIC to O-Ring 45 Degree Elbow | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 6802NWO810

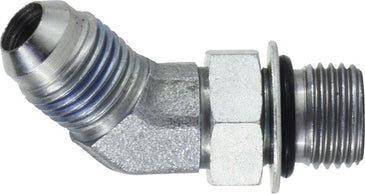

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 6802NWO810

3/4-16X7/8-14 (M JIC X M ORB 45 ELB), Hydraulic, Steel SAE O-Ring Fittings, JIC to O-Ring 45 Degree Elbow

Item Number	6802NWO810
Brand	Midland Metal Mfg.
Additional Information	3600 to 4500 psi Non-Adjustable; 0.280 lb Weight
Category	Hydraulic
Connection Size 1	1/2 in
Connection Size 2	5/8 in
Connection Type 1	MJIC
Connection Type 2	Male ORB
Connection Type	Male JIC\|Male ORB
Description	JIC to O-Ring 45 Degree Elbow
Fitting Type	45 deg Elbow
Material Construction	Steel
Material	Steel
Maximum Operating Pressure	3600 psi
Operating Temperature	375 deg F
Section	Steel SAE O-Ring Fittings
Shape	45 degree elbow
Thread Size	3/4-16 x 7/8-14
