46934 | 1/8 FIP MINI BALL VALVE, Brass Fittings, Miniature Ball Valves, Female x Female Economy Mini Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 46934

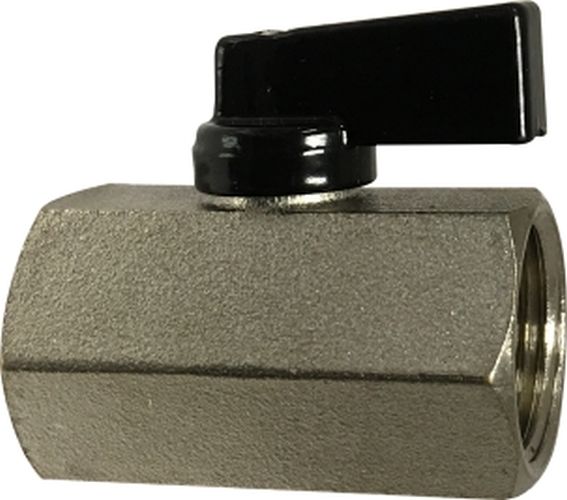

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 46934

1/8 FIP MINI BALL VALVE, Brass Fittings, Miniature Ball Valves, Female x Female Economy Mini Ball Valve

Item Number	46934
Brand	Midland Metal Mfg.
Additional Information	355 psi at 212 deg F; 142 psi at 356 deg F Pressure; 1/8-27 Thread Size; 0.210 lb Weight
Ball Material	Brass
Body Material	Forged Brass
Category	Brass Fittings
Connection Type	FNPT x FNPT
Description	Female x Female Economy Mini Ball Valve
Dimensions	1.57 in L x 1.46 in H
Domestic/Import	Import
Finish	Chrome-Plated
Handle Material	NBR 80
Inlet to Outlet Length	1.57 in
Material	Brass
Nominal Size	1/8 in
Operator Type	Flag Handle
Pressure Rating	450 psi
Seat Material	PTFE
Section	Miniature Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	32 to 176 deg F
Trim Material	Brass Ring Unit/NBR 80 O-Ring
