46924I | 1/2 F X F CHROME MINI BALL VALVE, Valves, Chrome Plated Brass Mini Ball Valves, Female x Female Chrome Plated Mini Ball Valve | Midland Metal Mfg.

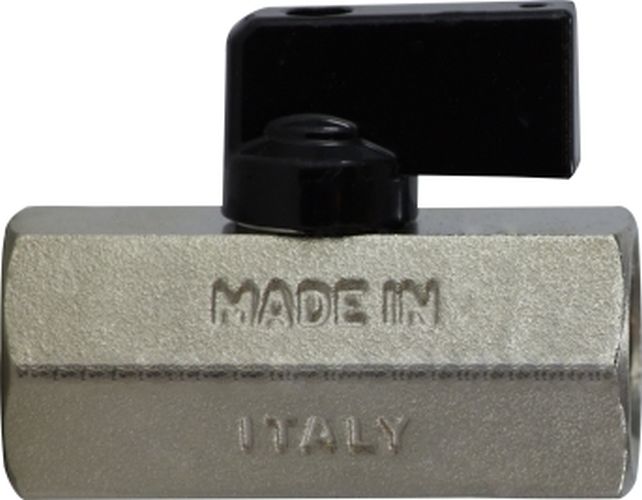

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 46924I
Overview Details for 46924I
1/2 F X F CHROME MINI BALL VALVE, Valves, Chrome Plated Brass Mini Ball Valves, Female x Female Chrome Plated Mini Ball Valve
Specifications
Item Number | 46924I |
Brand | Midland Metal Mfg. |
Additional Information | 1/2-14 Thread Size; 0.320 lb Weight |
Ball Material | Brass |
Body Material | Brass |
Category | Valves |
Connection Type | FPT x FPT |
Description | Female x Female Chrome Plated Mini Ball Valve |
Domestic/Import | Import |
Handle Material | Aluminum |
Inlet to Outlet Length | 2.18 in |
Lead-Free/Contains Lead | Contains Lead |
Material Standard | CW517N; CW614N |
Material | Brass |
Nominal Size | 1/2 in |
Operator Type | 1/4 Turn Handle |
Packing Material | PTFE |
Pressure Rating | 235 psi |
Seal Material | PTFE |
Seat Material | PTFE |
Section | Chrome Plated Brass Mini Ball Valves |
Shape | Valve |
Stem Material | Brass |
Temperature Rating | 32 to 176 deg F |
Top to Inlet Center | 1.26 in |
Trim Material | Steel Stem Nut/NBR O-Ring/Steel Screw |
