46922SS | 1/4 FIP SS MINI BALL VALVE, Valves, Stainless Steel Mini Ball valves, F X F SS 1,000# Mini Ball valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 46922SS

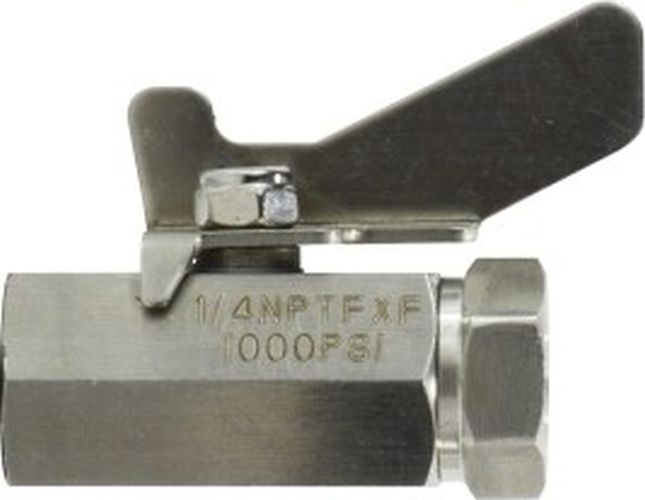

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 46922SS

1/4 FIP SS MINI BALL VALVE, Valves, Stainless Steel Mini Ball valves, F X F SS 1,000# Mini Ball valve

Item Number	46922SS
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Pressure; 1/4-18 Thread Size; 0.87 in Hex Size; 0.330 lb Weight
Ball Material	316 Stainless Steel
Body Material	316 Stainless Steel
Category	Valves
Connection Type	FIP x FIP
Description	F X F SS 1
Dimensions	2.34 in L
Domestic/Import	Import
Inlet to Outlet Length	2.34 in
Material	316 Stainless Steel
Nominal Size	1/4 in
Operator Type	Butterfly Handle
Port Type	Full
Pressure Rating	1000 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Stainless Steel Mini Ball valves
Shape	FIP X FIP w/FKM o-ring
Stem Material	316 Stainless Steel
Temperature Rating	-36 to 368 deg F
Top to Inlet Center	1-1/2 in
Trim Material	Fluoroelastomer O-Ring
