20787C | 3/8 x 1/4 (P-IN X MIP ANGLE VLV METER OUT), Brass Fittings, Composite Body Push In Fittings, Meter Out Right Angle Flow Control | Midland Metal Mfg.

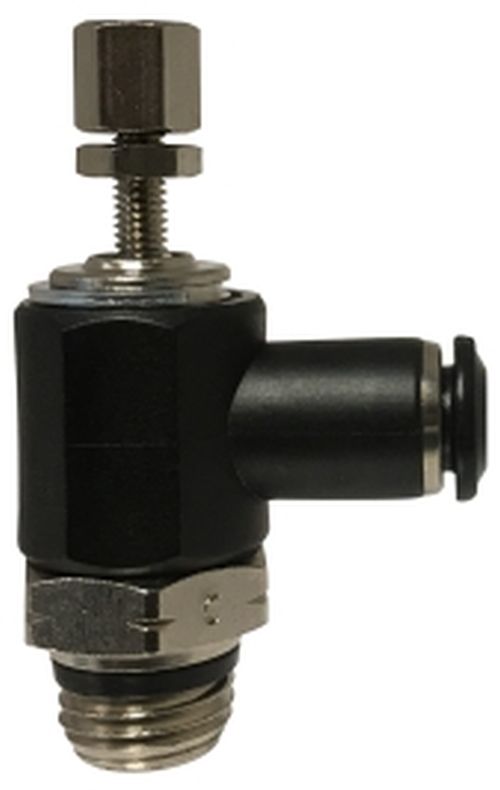

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 20787C
Overview Details for 20787C
3/8 x 1/4 (P-IN X MIP ANGLE VLV METER OUT), Brass Fittings, Composite Body Push In Fittings, Meter Out Right Angle Flow Control
Specifications
Item Number | 20787C |
Brand | Midland Metal Mfg. |
Additional Information | 340 psi Burst Pressure; Brass with White Sealant Thread; Acetal Resin Tube Release; Retainer and Spacer; Stainless Steel Gripper Ring; Air Fluid Admitted; 1/4-18 Thread Size; 0.090 lb Weight |
Body Material | Composite |
Category | Brass Fittings |
Connection Type | Push-In x MIP |
Description | Meter Out Right Angle Flow Control |
Domestic/Import | Domestic |
Material | Composite Body |
Nominal Size | 3/8 x 1/4 in |
Pressure Rating | 0 to 150 psi |
Seal Material | NBR |
Section | Composite Body Push In Fittings |
Shape | Flow Control |
Temperature Rating | 0 to 160 deg F |
