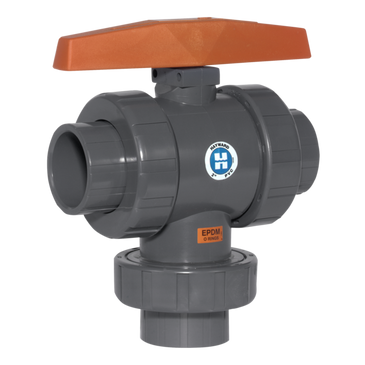

TW1125FE | 1-1/4" PVC 3-Way True Union Ball Valves w/EPDM o-rings; flanged end connections | Hayward

Brand: HaywardSKU: TW1125FE

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW1125FE

Jump to: Overview & Specifications Reviews

Overview Details for TW1125FE

1-1/4" PVC 3-Way True Union Ball Valves w/EPDM o-rings; flanged end connections

TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. Depending on flow configuration, see our Library, there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Position Indicator
• Easily Actuated
• PTFE Seats
• FPM or EPDM O-Rings
• Double O-Ring Stem Seal

Specifications

Item Number	TW1125FE
Brand	Hayward
A	4.40 in
B	5.94 in
Body Ball Material	PVC / TW Ball
Body Material	PVC
C	2.00 in
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	TW Series Three Way Ball Valves
D	3.63 in
E	5.19 in
End Connection Type	Flanged
End Connection	Flanged
F	11.54 in
G	4.00 in
H	3.50 in
J	4 in
Operation Type	Manual
Pipe Size	1-1/4 in
Sealing Material	EPDM
Seals	EPDM
Series	TW Series Horizontal Three Way True Union Ball Valves
Size	1-1/4"
Sub Category	Ball Valves
SubCategory	3-Way Ball Valves - TW Series
Subtype	Ball Valves
Subtype	Three Way True Union Ball Valves
Type	Thermoplastic Valves
