LA1100STE | 1" PVC 3-Way Lateral True Union Ball Valves w/EPDM o-rings; socket/threaded end connections | Hayward

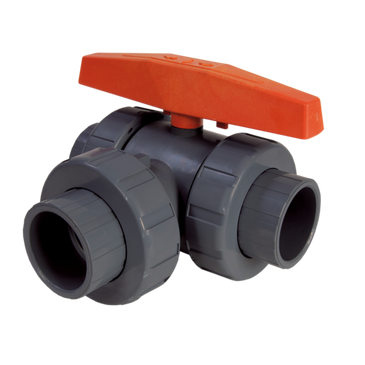

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LA1100STE

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward LA1100STE Documents

Datasheet More Info

Overview

Details for LA1100STE

1" PVC 3-Way Lateral True Union Ball Valves w/EPDM o-rings; socket/threaded end connections

Features

PVC and CPVC
PTFE Seats
FPM or EPDM O-Rings
Double O-Ring Stem Seal
Simplifies Lateral Connections
Replaces Valve/Tee
Connection Combinations
Quick, Easy to Install
Replacement for Zero Dead-Leg Valves

Оptions

Lockouts Available
Pneumatic and Electric Actuators
90º Ball

Materials

PVC Cell Class 12454 per ASTM D1784
CPVC Cell Class 23447 per ASTM D1784
FPM and EPDM O-Ring Seals

LA Series lateral 3-way ball valves are available in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• PTFE Seats
• FPM or EPDM O-Rings
• Double O-Ring Stem Seal
• Simplifies Lateral Connections
• Replaces Valve/Tee
Connection Combinations
• Quick, Easy to Install
• Replacement for Zero Dead-Leg Valves

Specifications

Item Number	LA1100STE
Brand	Hayward
A	3.00 in
B	2.98 in
Body Ball Material	PVC / Standard Ball
Body Material	PVC
C	4.14 in
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	LA Series Three Way Ball Valves
Cv Coefficient	10.0000
Cv Factor	10.0
E	4.00 in
End Connection Type	Socket/Threaded
End Connection	Socket/Threaded
F	4.77 in
G	8.50 in
H	3.23 in
Operation Type	Manual
Pipe Size	1 in
Sealing Material	EPDM
Seals	EPDM
Series	LA Series Lateral Three Way True Union Ball Valves
Size	1"
Sub Category	Ball Valves
SubCategory	3-Way Lateral Ball Valves - LA Series
Subtype	Ball Valves
Subtype	Three Way True Union Ball Valves
Type	Thermoplastic Valves
