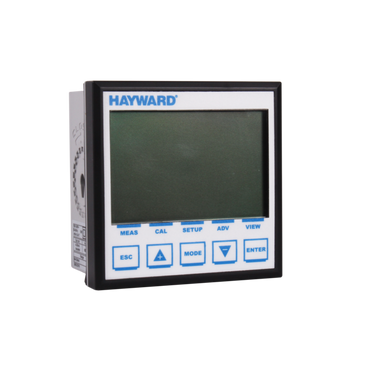

HLST200 | Indicating Level Transmitter, Dual 4-20 Ma | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HLST200

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward HLST200 Documents

Datasheet More Info

Overview

Details for HLST200

Indicating Level Transmitter, Dual 4-20 Ma

The HLST200 Series Indicating Level Transmitteroffers advanced level and temperature readingindication and transmission. The multicolor, configurable LCD graphical display provides easy viewing of process variables. Built-in relays, opencollectors, analog outputs and serial output allowa wide range of communications and controloptions.

• Indicate liquid level in inches, feet or meters
• Temperature indication and transmission included
• Highly accurate, +/- 0.2%
• Rugged industrial design
• Dual channel: 4-20 mA and PT100/PT1000 RTD inputs
• Configurable LCD graphical display, changes colors to indicate alarm conditions
• ¼ DIN size
• NEMA 4X IP65 protection front panel
• AC and DC power options
• Removable terminal strips
• Powered 4-20mA input loop
• Dual 4-20 mA outputs
• Dual 5A, 250 V programmable relays
• Dual programmable open collector outputs
• RS485 MODBUS option
• Simple, intuitive set-up
• Mounting hardware included
• Combine with HLS Series Level Sensor for complete system
• NEMA 4X/IP65 pre-wired enclosures available

Specifications

Item Number	HLST200
Brand	Hayward
Category	N/A
Class	N/A
Model	HLST200 Display
Power Type	AC
Series	HLST200 Indicating Level Transmitter Display
Sub Category	N/A
Subtype	Level Sensors and Displays
Type	Instrumentation
