HCTN2100FV | 1" Ready for Actuation 3-Way TU Ball Valve CPVC w/FPM o-rings, flanged ends | Hayward (OBSOLETE)

Brand: HaywardSKU: HCTN2100FV

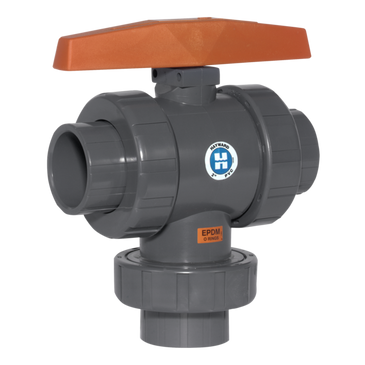

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HCTN2100FV

Jump to: Overview & Specifications Reviews

Overview Details for HCTN2100FV

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

1" Ready for Actuation 3-Way TU Ball Valve CPVC w/FPM o-rings, flanged ends

TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. Depending on flow configuration, see our Library, there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Position Indicator
• Easily Actuated
• PTFE Seats
• FPM or EPDM O-Rings
• Double O-Ring Stem Seal

Specifications

Item Number	HCTN2100FV
Brand	Hayward
Body Ball Material	CPVC / TW Ball
Category	Actuation & Controls
Chassis Description	Standard Body
Class	HCTN Series 3-Way Ball Valves
Cv Coefficient	10.0000
End Connection Type	Flanged
Operation Type	Actuation Ready
Pipe Size	1 in
Sealing Material	FPM
Series	TW Series Horizontal Three Way True Union Ball Valves
Sub Category	Actuator Ready Valves
Subtype	Ball Valves
Subtype	Three Way True Union Ball Valves
Type	Thermoplastic Valves
