Documents: HCTB5075SACTV

Datasheet More Info

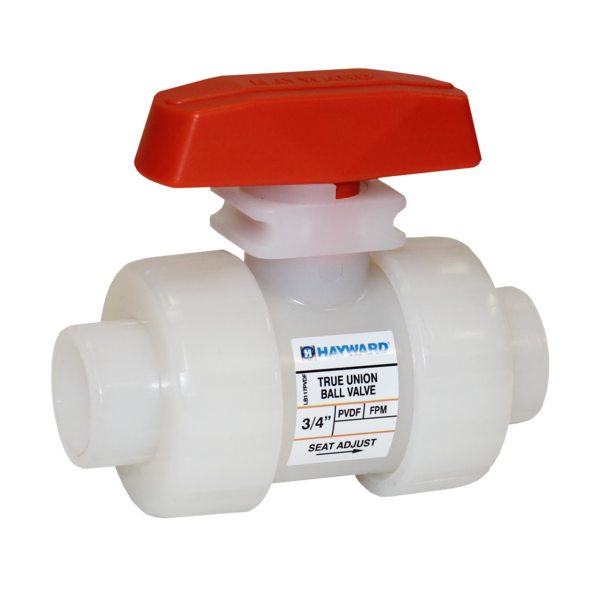

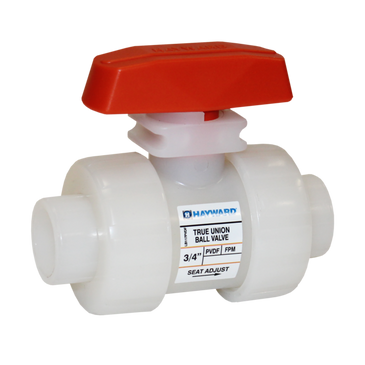

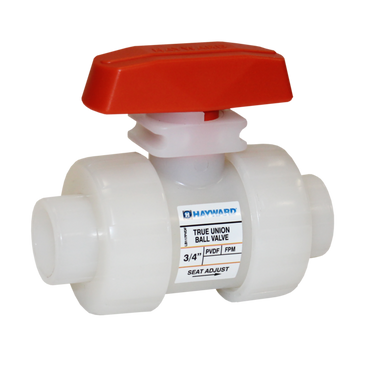

HCTB5075SACTV | 3/4" Actuation Ready PVDF True Union Ball Valve w/FPM o-rings; IPS socket fusion endss | Hayward

Brand: HaywardSKU: HCTB5075SACTV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HCTB5075SACTV

Jump to: Overview & Specifications Reviews

Overview Details for HCTB5075SACTV

3/4" Actuation Ready PVDF True Union Ball Valve w/FPM o-rings; IPS socket fusion endss

TB Series True Union Ball Valves now in PVDF.

• Available in sizes 1/4”-2”
• Threaded or Socket Fusion (IPS) Ends
• Full Port Design
• FPM O-Ring Seals Standard, EPDM upon request
• Reversible PTFE Seats
• Double O-Ring Stem Seals
• Available with Electric or Pneumatic Actuation

Specifications

Item Number	HCTB5075SACTV
Brand	Hayward
Category	Thermoplastic Valves
Class	TB Series PVDF True Union Ball Valves
End Connection Type	IPS Socket Fusion
Material	PVDF
Operation Type	Actuation Ready
Pipe Size	3/4 in
Sealing Material	FPM
Subtype	Industrial Ball Valves
Suby Category	Ball Valves
Valve Type	Ball
