BYV44100A0EKI00 | 10" Butterfly Valve w/GFPP Body - Lugged; PP Disc; EPDM liner & seals; Actuation ready | Hayward

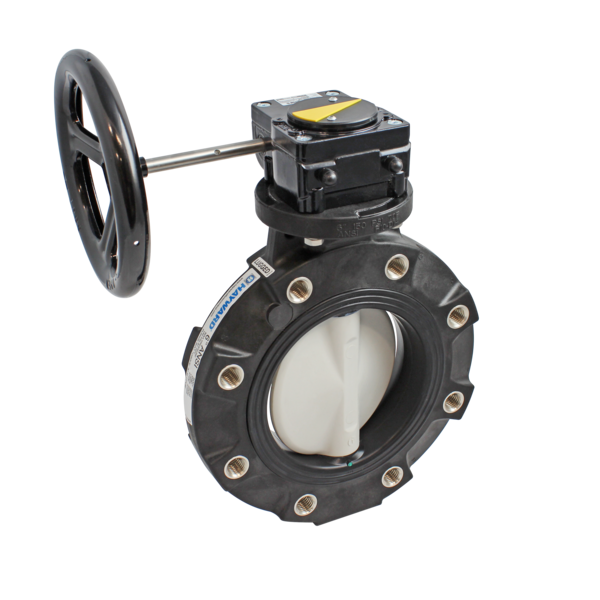

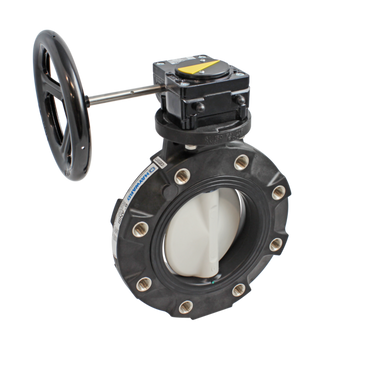

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BYV44100A0EKI00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward BYV44100A0EKI00 Documents

Datasheet More Info

Overview

Details for BYV44100A0EKI00

10" Butterfly Valve w/GFPP Body - Lugged; PP Disc; EPDM liner & seals; Actuation ready

The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines. “Patented” & Other Patents Pending” Pat. No.: 9,695,947; 9,989,154; 10,683,937; 10,683,938; 10,690,252; 11,092,242.

• One Piece Injection Molded PVC, CPVC or GFPP Body
• PVC, CPVC or GFPP Disc Materials
• Hand Lever with 19 Lockable Stop Positions & 360° Interlocking Splines
• External Disc Position and Flow Indication
• Hydro-dynamic Centric Disc for Increased Flow Performance
• Over-Sized Liner Face Maximizes Surface Contact with Flanges
• 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
• Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
• ISO 5211 Top Flange and Stem Drive
• All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
• Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70°F Non-Shock
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	BYV44100A0EKI00
Brand	Hayward
Body Material Type	GFPP Body
Body Material	GFPP
Category	Actuation & Controls
Category	Butterfly Valves
Class	BYV Actuated Series Butterfly Valve
Cv Coefficient	4723.0000
Disc Material	GFPP
Disc Material	GFPP Disc
Flow Coefficient (Cv)	4700
ISO 5211 Flange & Drive	F12-V28
Liner Material	EPDM
Medium Temperature Range	70 ºF 21 ºC
Method of Operation	Bare Stem
Operation Type	Actuation Ready
Pipe Size	10 in
Pressure Rating at 70°F	150 psi 10 bar
Pressure Rating	150 PSI
Seal Material	EPDM
Sealing Material	EPDM
Series	BYV Series Butterfly Valves
Stem Material	316SS
Sub Category	Actuator Ready Valves
SubCategory	BYV Series Butterfly Lugged Valves - Actuation Ready
Subtype	Butterfly Valves
Type	Thermoplastic Valves
Valve Size	10 in
