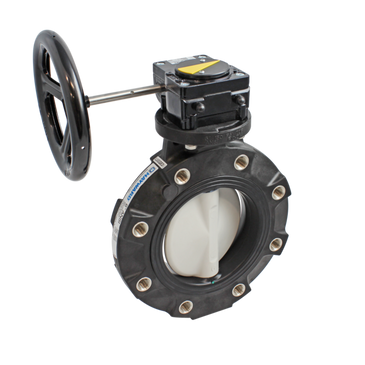

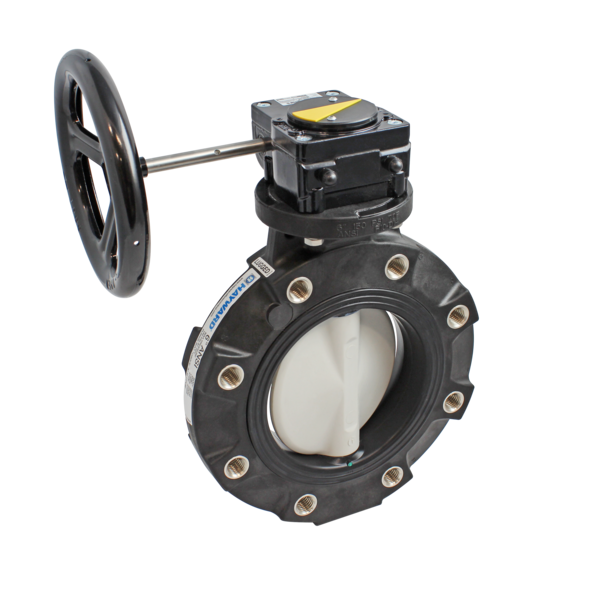

BYV14120A0VKI00 | 12" Butterfly Valve w/PVC Body - Lugged; PP Disc; FKM liner / FPM seals; Actuation ready | Hayward

Hayward | BYV14120A0VKI00
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BYV14120A0VKI00

Documents and manuals

Hayward BYV14120A0VKI00 Documents

Overview

Details for BYV14120A0VKI00

12" Butterfly Valve w/PVC Body - Lugged; PP Disc; FKM liner / FPM seals; Actuation ready

The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines. “Patented” & Other Patents Pending” Pat. No.: 9,695,947; 9,989,154; 10,683,937; 10,683,938; 10,690,252; 11,092,242.

• One Piece Injection Molded PVC, CPVC or GFPP Body
• PVC, CPVC or GFPP Disc Materials
• Hand Lever with 19 Lockable Stop Positions & 360° Interlocking Splines
• External Disc Position and Flow Indication
• Hydro-dynamic Centric Disc for Increased Flow Performance
• Over-Sized Liner Face Maximizes Surface Contact with Flanges
• 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
• Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
• ISO 5211 Top Flange and Stem Drive
• All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
• Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70°F Non-Shock
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number BYV14120A0VKI00
Brand Hayward
Body Material Type PVC Body
Body Material PVC
Category Actuation & Controls
Category Butterfly Valves
Class BYV Actuated Series Butterfly Valve
Cv Coefficient 6400.0000
Disc Material GFPP
Disc Material GFPP Disc
Flow Coefficient (Cv) 7100
ISO 5211 Flange & Drive F12-V36
Liner Material FKM®
Medium Temperature Range 70 ºF 21 ºC
Method of Operation Bare Stem
Operation Type Actuation Ready
Pipe Size 12 in
Pressure Rating at 70°F 150 psi 10 bar
Pressure Rating 150 PSI
Seal Material FPM
Sealing Material FPM
Series BYV Series Butterfly Valves
Stem Material 316SS
Sub Category Actuator Ready Valves
SubCategory BYV Series Butterfly Lugged Valves - Actuation Ready
Subtype Butterfly Valves
Type Thermoplastic Valves
Valve Size 12 in
