NCM-300 | NCM-300 3 Zone Non Expand Cntr Panel | EWC Controls
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NCM-300
Documents and manuals
EWC Controls NCM-300 Documents
Overview
Details for NCM-300

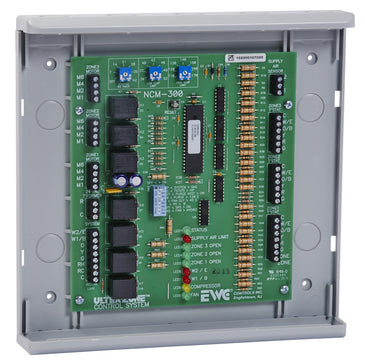

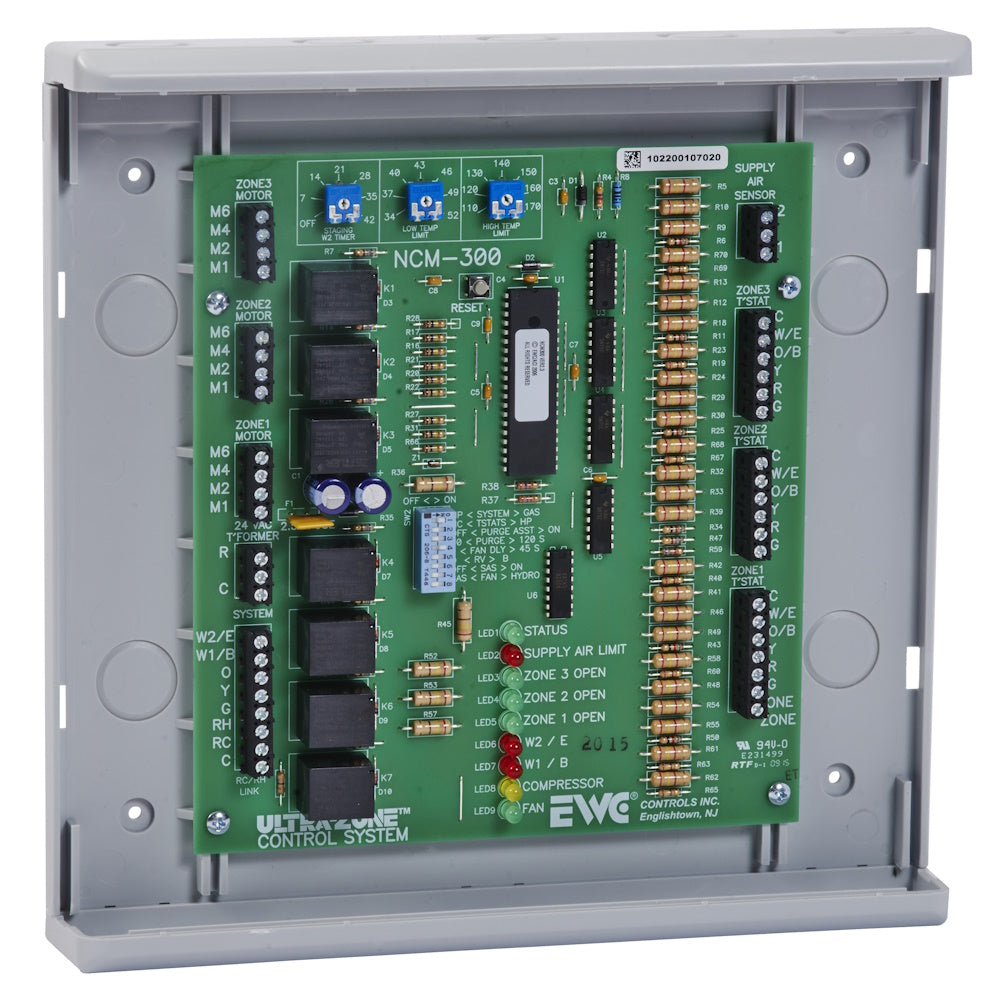

NCM-300 3 Zone Non Expand Cntr Panel
FEATURES
- NUMBER OF ZONES: 2 - 3 Zones, Non-expandable.
- COMPATIBLE EQUIPMENT: Gas/Electric/Hydro – Up to 2 Stages Heating and 1 Stage Cooling. Heat Pump Conventional – Up to 2 Stages Heating and 1 Stage Cooling.
- COMPATIBLE THERMOSTATS: Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat.
- COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.
- Staging via Adjustable On-board Timer (7 to 42 Minutes).
- Enhanced Hydro-Air capabilities, can delay fan activation on Heating demand.
- Supply Air Temperature Monitoring to help protect HVAC equipment.
- Adjustable Purge time (90 or 120 seconds).
- On Board LED’s indicate system operation.
Specifications
Item Number | NCM-300 |
Brand | EWC Controls |
Type | Zoning Panel |
