P2200SU-761+ARX24-EP2 | Electronic Pressure Independent Valve (EPIV), 2", 2-way, 76.1 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo (OBSOLETE)

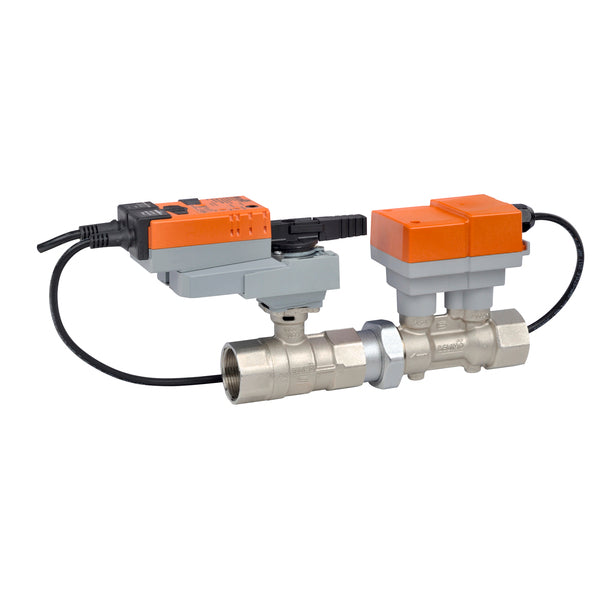

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P2200SU-761+ARX24-EP2
Documents and manuals
Belimo P2200SU-761+ARX24-EP2 Documents
Overview
Details for P2200SU-761+ARX24-EP2
DISCONTINUED AND REPLACED WITH EP200+ARX-E
Electronic Pressure Independent Valve (EPIV), 2", 2-way, 76.1 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V
Specifications
- Valve specifications
- Angle of Rotation
- 90
- End Fitting
- Internal thread
- Flow
- 76.1
- Fluid
- Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
- Pattern
- 2-way
- PI-Technology
- Electronic
- Pressure Independent
- YES
- Sensor Technology
- Ultrasonic with glycol and temperature compensation
- Trim
- Stainless steel
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Running)
- 8.5 W
- Running Time (Motor)
- 90 s
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
