P2200SU-1000+ARX24-EP2-MOD | Electronic Pressure Independent Valve (EPIV), 2", 2-way, 100 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo (OBSOLETE)

Belimo | P2200SU-1000+ARX24-EP2-MOD

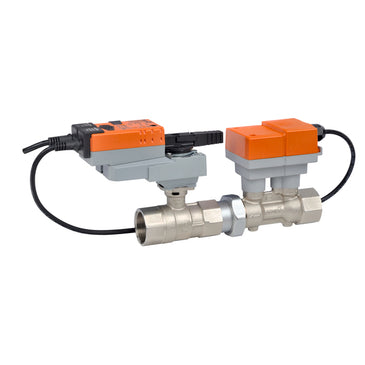

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P2200SU-1000+ARX24-EP2-MOD
Jump to: DocumentsOverview SpecificationsAlternativesReviews

Documents and manuals

Belimo P2200SU-1000+ARX24-EP2-MOD Documents

Datasheet Installation Instructions More Info

Overview

Details for P2200SU-1000+ARX24-EP2-MOD

DISCONTINUED AND REPLACED WITH EP200H+ARX-E

Electronic Pressure Independent Valve (EPIV), 2", 2-way, 100 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V

Water-side control of heating and cooling systems for AHUs and water coils. Equal Percentage/ Linear: heating and cooling applications.

Specifications

Valve specifications
Angle of Rotation
90
End Fitting
Internal thread
Flow
100
Fluid
Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern
2-way
PI-Technology
Electronic
Pressure Independent
YES
Sensor Technology
Ultrasonic with glycol and temperature compensation
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
  • BACnet MS/TP
  • Modbus RTU
  • MP-Bus
  • Hybrid (communicative/analog)
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Running)
8.5 W
Running Time (Motor)
90 s
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC/DC 24 V

Alternatives

Belimo EP200H+ARX-E Configurable | Electr. 2-way PI-CCV EPIV | AC/DC 24 V | BACnet MS/TP | Modbus RTU | MP-Bus | DN 2"[50] | Internal thread | GPM 100 | Blackhawk Supply
EP200H+ARX-E | Configurable | Electr. 2-way PI-CCV EPIV | AC/DC 24 V | BACnet MS/TP | Modbus RTU | MP-Bus | DN 2"[50] | Internal thread | GPM 100 | Belimo
$1,539.90 each
