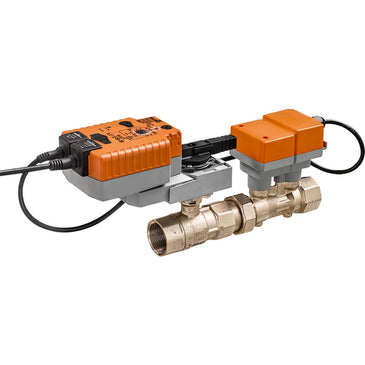

P2075SU-103+AKRX24-EP2 | Electronic Pressure Independent Valve (EPIV), 3/4", 2-way, 10.3 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V | Belimo (OBSOLETE)
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P2075SU-103+AKRX24-EP2
Documents and manuals
Belimo P2075SU-103+AKRX24-EP2 Documents
Overview
Details for P2075SU-103+AKRX24-EP2
DISCONTINUED AND REPLACED WITH EP075+AKRX-E
Electronic Pressure Independent Valve (EPIV), 3/4", 2-way, 10.3 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V
Application
Water-side control of heating and cooling systems for AHUs and water coils. Equal Percentage/ Linear: heating and cooling applications.
Operation
The Electronic Pressure Independent Control Valve is a two-way valve that maintains constant flow regardless of pressure variations in the system.
Product Features
Provides constant flow regardless of pressure variations in the system. Maximizes chiller Delta T, preventing energizing additional chillers due to low Delta T. Simplified valve sizing and selection, no Cv calculations required.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- End Fitting
- Internal thread
- Flow
- 10.3
- Fluid
- Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
- Pattern
- 2-way
- PI-Technology
- Electronic
- Pressure Independent
- YES
- Sensor Technology
- Ultrasonic with glycol and temperature compensation
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Running)
- 8 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
