F7100HD+PRXUP-MFT-T | Butterfly Valve | 4" | 3 Way | 600 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH | Belimo
Butterfly Valve (BFV), 4", 3-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

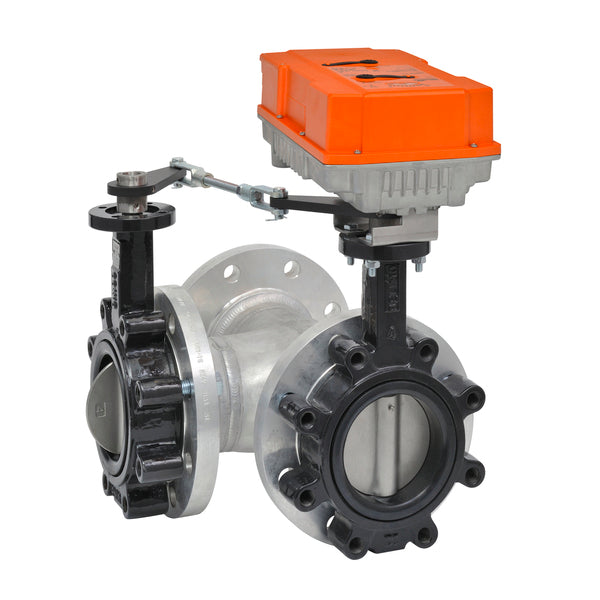

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F7100HD+PRXUP-MFT-T
Overview
Details for F7100HD+PRXUP-MFT-T
Butterfly Valve | 4" | 3 Way | 600 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH
PR Series valve actuators are designed with an integrated linkage and visual position indicators. Foroutdoor applications, the installed valve must be mounted with the actuator at or above horizontal. Forindoor applications the actuator can be in any location including directly under the valve.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 600
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Torque
- 160 Nm
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
