F6100HD+DRCX120-3 N4 | Butterfly Valve | 4" | 2 Way | 600 Cv | w/ Non-Spring | 120V | Floating | NEMA 4 | Belimo

Butterfly Valve (BFV), 4", 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, NEMA 4X, terminals

Belimo | F6100HD+DRCX120-3 N4

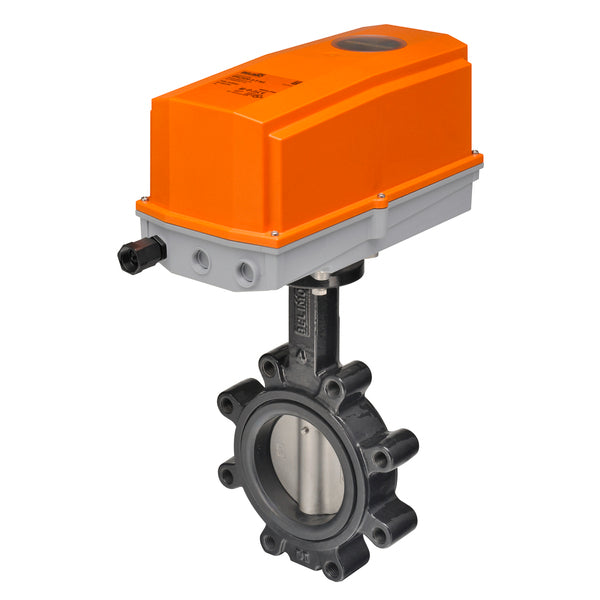

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6100HD+DRCX120-3 N4
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo F6100HD+DRCX120-3 N4 Documents

Datasheet Installation Instructions More Info

Overview

Details for F6100HD+DRCX120-3 N4

Butterfly Valve | 4" | 2 Way | 600 Cv | w/ Non-Spring | 120V | Floating | NEMA 4

Specifications

Valve specifications
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
600
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
4" [100]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
On/Off
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Under cover
Power Consumption (Holding)
2 W
Power Consumption (Running)
6 W
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC 100...240 V
