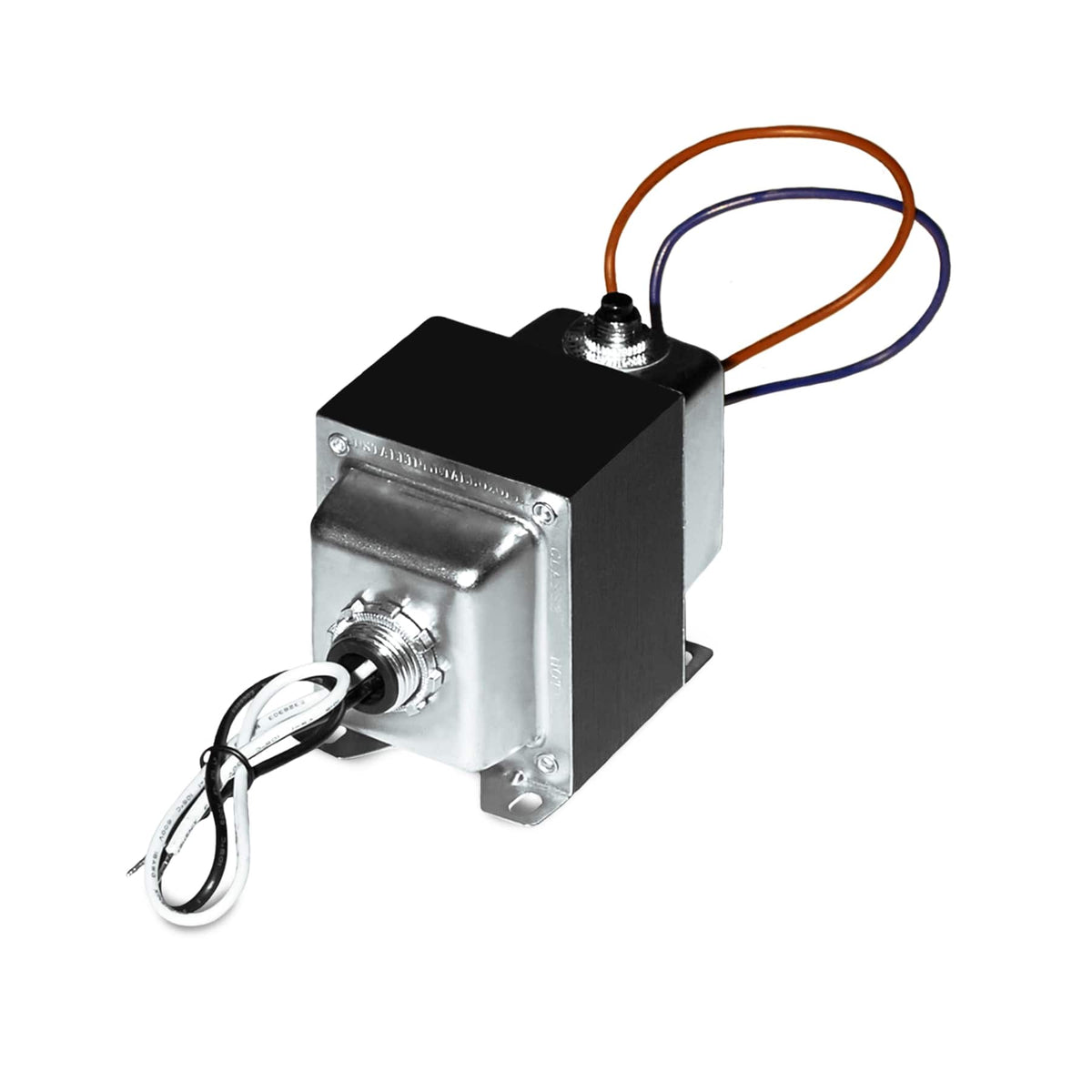

LE15022 | Transformer, LE Series, PV:120/208/240/480 VAC, SV:24 VAC, VA:96, HUB: 1TF/1SO, Manual Reset | ACI (OBSOLETE)
Transformer, LE Series, PV:120/208/240/480 VAC, SV:24 VAC, VA:96, HUB: 1TF/1SO, Manual Reset
Documents and manuals
ACI LE15022 Documents
Overview
Details for LE15022
Transformer, LE Series, PV:120/208/240/480 VAC, SV:24 VAC, VA:96, HUB: 1TF/1SO, Manual Reset
The LE Series control transformers are designed to provide a stable, clean and reliable 24VAC power source. Many different styles and VA output ranges are available. All of our transformers are UL and CUL or CSA approved. Mounting configurations are available with 1/2" conduit hubs and mounting feet. Single and multiple primary input transformers are available in ranges from 40 to 150VA. A manual reset circuit breaker pushbutton is used in some of the models. The LE Series is also incorporate a Class F, 150 insulation system. The LE Series is coverd by ACI's Two (2) Year Limited Warranty.
Specifications
Item Number | LE15022 |
Brand | ACI |
