Documents: 52984834

Data sheet PE 81.58 Operating Instruction Safety manual EN DE FR ES

52984834 | IS-3 Standard ; 0/4000 psi; 4...20 mA, 2-wire | Wika

Brand: WikaSKU: 52984834

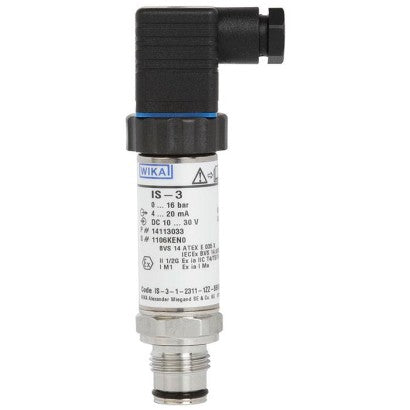

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 52984834

Jump to: Overview & Specifications Reviews

Overview Details for 52984834

IS-3 Standard ; 0/4000 psi; 4...20 mA, 2-wire

Applications

Chemical, petrochemical industry
Oil, natural gas
Machine building

Special Features

Measuring ranges from 0 ... 0.1 to 0 ... 6,000 bar [0 ... 3 to 0 ... 15,000 psi]
Approved for use in hazardous areas, e.g. ATEX, IECEx, FM and CSA

Description

For the highest demands
The pressure transmitters of the IS-3 series have been specifically designed for the highest industrial requirements in hazardous areas and feature the common approvals, such as ATEX, IECEx, FM and CSA.

The model IS-3 pressure transmitter is available with measuring ranges up to 6,000 bar and is suitable for applications ranging from general machine building to high-pressure applications.

Design
All wetted parts are manufactured from stainless steel and are fully welded. Internal sealing elements are completely avoided, so that the unit can be used with almost all media. The robust case is also made of stainless steel and provides a minimum ingress protection of IP65. IP68 versions are also available.

The process connections with flush diaphragm are particularly suitable for the measurement of viscous and contaminated media and ensure trouble-free pressure measurement at all times.

The optional field case of the model IS-3 enables operation in extreme environmental conditions and is resistant to acids, bases, oils and solvents. Via the field case connection integrated into the case's head, the electrical cabling can be installed quickly and easily.

Voltage supply
It is recommended that the intrinsically safe variants of the IS-3 series are powered via a suitable repeater power supply. An ideal voltage supply is offered by the intrinsically safe repeater power supply model IS Barrier, see “Accessories”.
