52981706 | A-10; 0...50 mbar gauge; 1/2 NPT; 0.5 ... 4.5 V, 3-wire | Wika

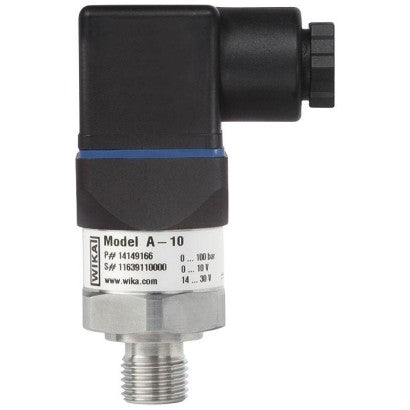

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 52981706
Documents and manuals
Wika 52981706 Documents
Overview
Details for 52981706
A-10; 0...50 mbar gauge; 1/2 NPT; 0.5 ... 4.5 V, 3-wire
Applications
- Machine building
- Ship building
- Measurement and control technology
- Hydraulics and pneumatics
- Pumps and compressors
Special Features
- Measuring ranges from 0 ... 0.05 to 0 ... 1,000 bar [0 ... 1 to 0 ... 15,000 psi]
- Non-linearity 0.25 % or 0.5 %
- Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
- Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m [6 ft]
- Process connection G ¼ A DIN EN ISO 1179-2, ¼ NPT and others
Description
The model A-10 pressure transmitter for general industrial applications is not only notable for its compact design, but it also offers excellent quality at an extremely competitive price.
The user can choose between a non-linearity of 0.25 % and 0.5 %. A free test certificate provides information on the measuring points recorded during manufacture.
The model A-10 pressure transmitter is set up for worldwide use through the international cULus and EAC certification. The various pressure units and process connections required for particular operating conditions are available at short notice.
Specifications
Item Number | 52981706 |
Brand | Wika |
