52971168 | LS-10 ; 0 ... 100 psi; 4 ... 20 mA, 2-wire | Wika

Brand: WikaSKU: 52971168

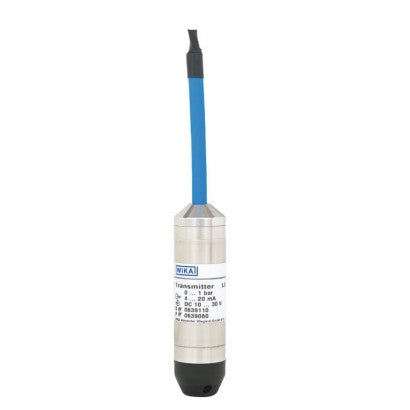

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 52971168

Jump to: Overview & Specifications Reviews

Overview Details for 52971168

LS-10 ; 0 ... 100 psi; 4 ... 20 mA, 2-wire

Applications

Level measurement in rivers and lakes
Level measurement in vessel and storage systems
Control of sewage lift and pumping stations
Monitoring of sewage, settling and stormwater retention basins

Special Features

Robust
Reliable
Economical

Description

For simple measuring tasks
The model LS-10 submersible pressure transmitter has been optimised for simple measuring requirements in level measurement. It offers excellent quality, is cost-effective and reliable.

It has been designed to the current demands of the industry and has a 4 ... 20 mA output as standard, an accuracy of 0.5% and PUR cable. With IP 68 ingress protection, it is suitable for permanent level measurement up to 100 m water column.

Reliable and long-lasting
The submersible pressure transmitter features a hermetically-sealed and exceptionally robust stainless steel case. The proven, fully-welded construction ensures a long service life and permanent sealing.
