Documents: 52853982

Data sheet PE 81.69 Operating Instruction

52853982 | PSD-4-ECO ; 0...100 psig; two switching outputs (NPN) | Wika

Brand: WikaSKU: 52853982

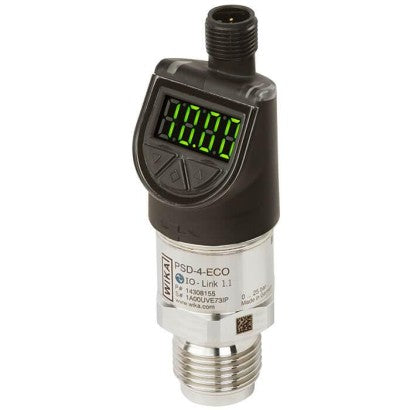

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 52853982

Jump to: Overview & Specifications Reviews

Overview Details for 52853982

PSD-4-ECO ; 0...100 psig; two switching outputs (NPN)

Applications

Machine tools
Hydraulics and pneumatics
Automation engineering
Special-purpose machine building

Special features

Good/bad indication through parameterisable digital display (red/green)
Compact size enables easy installation in narrow spaces
Optimised design makes OEM machine integration easier
Designed for rough demands of up to 50 g shock and -40 ... +125 °C [-40 ... +257 °F]

Description

The model PSD-4-ECO is a programmable electronic pressure switch designed specifically for OEM customers. With IO-Link 1.1, the cost-effective and reliable model PSD-4-ECO is a future-proof automation solution. Through individual factory pre-configuration, the pressure switch can also be quickly and simply integrated into the machine without any programming effort.

Fast error detection through colour feedback
With the model PSD-4-ECO pressure switch, it is very easy to determine if the system is operating within the desired pressure range. The instrument can be parameterised such that the digital display lights up green when the value is within the defined pressure range and red if not. In this way, problems can be identified early.

Optimised for tight mounting spaces
With a diameter of 29 mm, the model PSD-4-ECO is very slim. Through the arrangement of the electrical output, it can be installed so that it uses little space. The display head can be rotated through 335° and the display tilted electronically through 180°, so that the pressure display is always aligned
towards the user.

Optimised for OEM integration
The pressure switch is specially adapted to the requirements of OEM series production. For example, units of 25 pieces reduce the packaging material and make handling easier.
Customer-specific pre-configuration by WIKA or automated parameterisation via IO-Link 1.1 saves time and simplifies the integration process.

Designed for harsh ambient conditions
Tough: The model PSD-4-ECO pressure switch is designed for medium temperatures from -40 ... +125 °C. In addition, it withstands mechanical shocks up to 50 g and high electrical loads. This makes it a highly economical and reliable solution.
