Documents: 50795821

Data sheet PE 81.53 Operating Instruction

50795821 | HP-2-S ; 0...60000 psi; 4...20 mA, 2-W | Wika

Brand: WikaSKU: 50795821

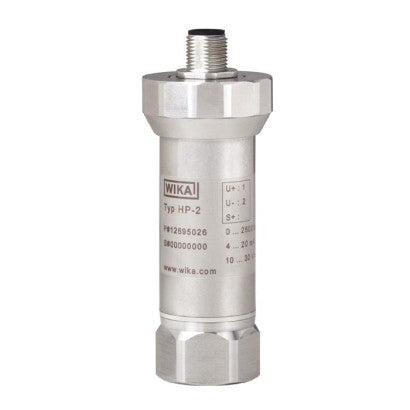

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 50795821

Jump to: Overview & Specifications Reviews

Overview Details for 50795821

HP-2-S ; 0...60000 psi; 4...20 mA, 2-W

Applications

Test bench construction
Water jet cutting
High pressure pasteurisation
High pressure cleaning

Special Features

High number of load cycles due to patented design
Exchangeable process connection in case of an hair line crack
Suitable for highly dynamic pressure due to diaphragm protection system
Reduced recalibration costs due to excellent long term stability

Description

For highest pressures
The model HP-2 pressure sensor has been specifically developed for demanding high pressure applications up to 15,000 bar [217,500 psi]. This makes it one of the few pressure measuring instruments in the world that can reliably measure pressures of this magnitude.

High accuracy
This pressure sensor features a very high long-term stability and offers extremely high accuracy for the highest pressures. Measuring ranges up to and including 0 ... 10,000 bar [145,000 psi] can, as an option, be supplied with an even higher accuracy of 0.25 %.

Long service life
Thanks to its excellent load cycle stability, the model HP-2 has a particularly long service life, even with dynamic pressure profiles.
A protection against cavitation and pressure spikes, specifically developed for highly dynamic pressure profiles, further extends the service life. For water as a pressure medium, this protection is particularly recommended.
