45876124 | PSD-4; 0...100 bar gauge ; two switching output (PNP/NPN) + | Wika

Brand: WikaSKU: 45876124

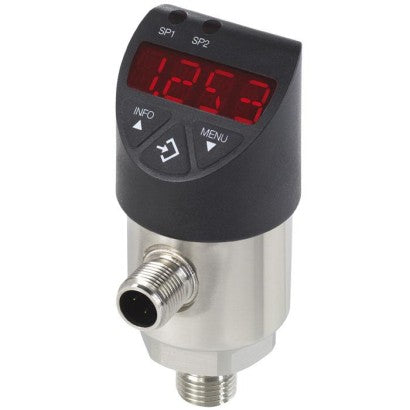

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 45876124

Jump to: Overview & Specifications Reviews

Overview Details for 45876124

PSD-4; 0...100 bar gauge ; two switching output (PNP/NPN) +

Applications of the electronic pressure switch

Machine tools
Hydraulics and pneumatics
Pumps and compressors
Special-purpose machine building

Special features of the electronic pressure switch

Easily readable, robust digital display
Intuitive and fast setup
Easy and flexible mounting configurations
Flexibly configurable and scalable output signals

Description of the electronic pressure switch

Leading in design and functionality
The electronic pressure switch model PSD-4 pressure switch represents the extensive further development of the PSD-30 electronic pressure switch, itself already awarded with the “iF product design award” for its outstanding functionality. A high accuracy of 0.5 %, freely configurable output signals (PNP/NPN, 4 ... 20 mA/0 ... 10 V), the 5:1 scalability of the analogue output, in addition to outstanding self-diagnostics, make the PSD-4 an excellent automation solution.

Customised installation
The installation of the PSD-4 can be flexibly adapted to the individual mounting situation. Due to the almost unlimited rotation of the digital display and case by more than 300°, the digital display can be adjusted independently of the electrical connection. The digital display can thus always be aligned to face the operator, and the M12 x 1 connection positioned to suit the desired cable routing.

High quality
During development of the WIKA switch family a high value was placed on a robust design and the selection of appropriate materials suited to machine-building applications. For this reason the case and the threaded connection of the electrical connector are made from stainless steel. Overwinding or tearing off the connector is therefore virtually impossible.

IO-Link 1.1
With the optional output signal in accordance with the IO-Link communication standard, the PSD-4 electronic pressure switch allows a fast integration into modern automation systems. IO-Link offers simpler and faster installation, parameterisation and higher functionality for the PSD-4.
