45843803 | A-10; 0...160 psig; G 1/4 A DIN EN ISO 1179-2 (formerly DIN | Wika

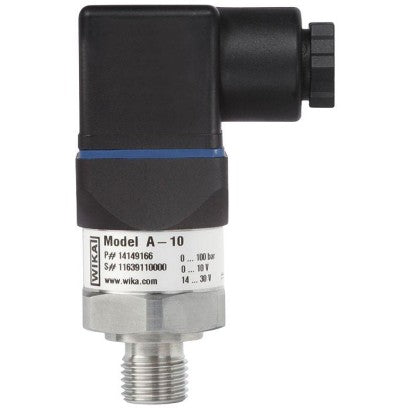

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 45843803

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Wika 45843803 Documents

Data sheet PE 81.60 Operating Instruction

Overview

Details for 45843803

A-10; 0...160 psig; G 1/4 A DIN EN ISO 1179-2 (formerly DIN

Applications

Machine building
Ship building
Measurement and control technology
Hydraulics and pneumatics
Pumps and compressors

Special Features

Measuring ranges from 0 ... 0.05 to 0 ... 1,000 bar [0 ... 1 to 0 ... 15,000 psi]
Non-linearity 0.25 % or 0.5 %
Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m [6 ft]
Process connection G ¼ A DIN EN ISO 1179-2, ¼ NPT and others

Description

The model A-10 pressure transmitter for general industrial applications is not only notable for its compact design, but it also offers excellent quality at an extremely competitive price.

The user can choose between a non-linearity of 0.25 % and 0.5 %. A free test certificate provides information on the measuring points recorded during manufacture.

The model A-10 pressure transmitter is set up for worldwide use through the international cULus and EAC certification. The various pressure units and process connections required for particular operating conditions are available at short notice.
