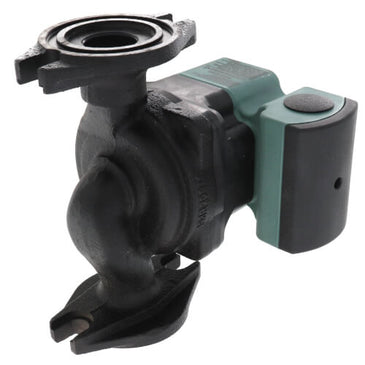

VR1816-HY2-FC2A00 | Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 18ft Max Head | 125 PSI Max Press. | Series VR1816 | Taco

Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 18ft Max Head | 125 PSI Max Press. | Series VR1816

The Viridian VR1816 circulator is an infinitely variable speed, high-efficiency wetrotor circulator with an ECM permanent magnet motor. Operating modes includeinfinitely variable fixed speed and self-adjusting constant pressure or proportionalpressure variable speed.

Specifications:

• Connection type: Flanged
• Flange Code: S
• High-efficiency ECM motoruses up to 85% less electricity
• Infinitely variable speed settings to fine tune flow for any system
• Six pressure presets to fit the job
• Sure Start automatic unblockingand air purging mode

Features

• 18ft. Shut-off head, 16 gpm max flow
• ECM High-efficiency motor
• Easy to use dial to set operating speed or pressure control
• 3 operating modes:
  • Fixed speed - infinitely adjustable min/max settings
  • Constant pressure - variable speed - 3 constant pressure differential curves (5, 10, or 15 feet of head)
  • Proportional pressure - variable speed - 3 variable pressure differential curves (High, Med, or Low)
• Multi-color LED display showing operating mode and error code diagnostics.
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation.
• Integral Flow Check (IFC) is included in carton. Simply press into discharge flange if required.
• Dual electrical knockouts
• Whisper quiet operation.
• BIO Barrier® protects the pump from system contaminants
