VR1816-HY2-4C2A00 | Viridian Infinitely Variable ECM High Efficiency Circulator, Less Flanges - Universal (120V) | Taco

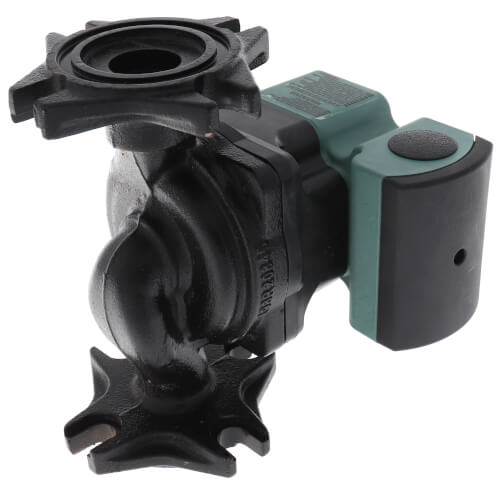

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VR1816-HY2-4C2A00
Overview Details for VR1816-HY2-4C2A00
Viridian Infinitely Variable ECM High Efficiency Circulator, Less Flanges - Universal (120V)
The Viridian VR1816 circulator is an infinitely variable speed, high-efficiency wetrotor circulator with an ECM permanent magnet motor. Operating modes includeinfinitely variable fixed speed and self-adjusting constant pressure or proportionalpressure variable speed.
Specifications:
- Connection type: Flanged, Universal
- Flange Code: U
- High-efficiency ECM motoruses up to 85% less electricity
- Infinitely variable speed settings to fine tune flow for any system
- Six pressure presets to fit the job
- Sure Start automatic unblockingand air purging mode
- 18ft. Shut-off head, 16 gpm max flow
- ECM High-efficiency motor
- Easy to use dial to set operating speed or pressure control
- 3 operating modes:
- Fixed speed - infinitely adjustable min/max settings
- Constant pressure - variable speed - 3 constant pressure differential curves (5, 10, or 15 feet of head)
- Proportional pressure - variable speed - 3 variable pressure differential curves (High, Med, or Low)
- Multi-color LED display showing operating mode and error code diagnostics.
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation.
- Integral Flow Check (IFC) is included in carton. Simply press into discharge flange if required.
- Dual electrical knockouts
- Whisper quiet operation.
- BIO Barrier® protects the pump from system contaminants
Specifications
Item Number | VR1816-HY2-4C2A00 |
Brand | Taco |
Amperage | 0.54 |
Application | Commercial |
Connection Type | Universal |
Flow Range (GPM) | 0-16 |
Head Range (ft.) | 0-18 |
Horse Power | 1/25 |
Material | Cast Iron |
Max Flow (GPM) | 16 |
Max Head (Ft) | 18 |
Max Pressure (PSI) | 125 |
Phase | 1 |
RPM | 1590 - 4830 |
Series | Series 0018e VR |
Speeds | Variable |
Type | Pump |
Voltage | 120v |
Warranty | 1 Year |
