VM1816-HY2-4C2A00 | Circulator Pump (Variable Speed) | Cast Iron | 115V | Single Phase | 0.54A | Flanged | 16 GPM | 18ft Max Head | 125 PSI Max Press. | Series 0015e3 | Taco

Brand: TacoSKU: VM1816-HY2-4C2A00

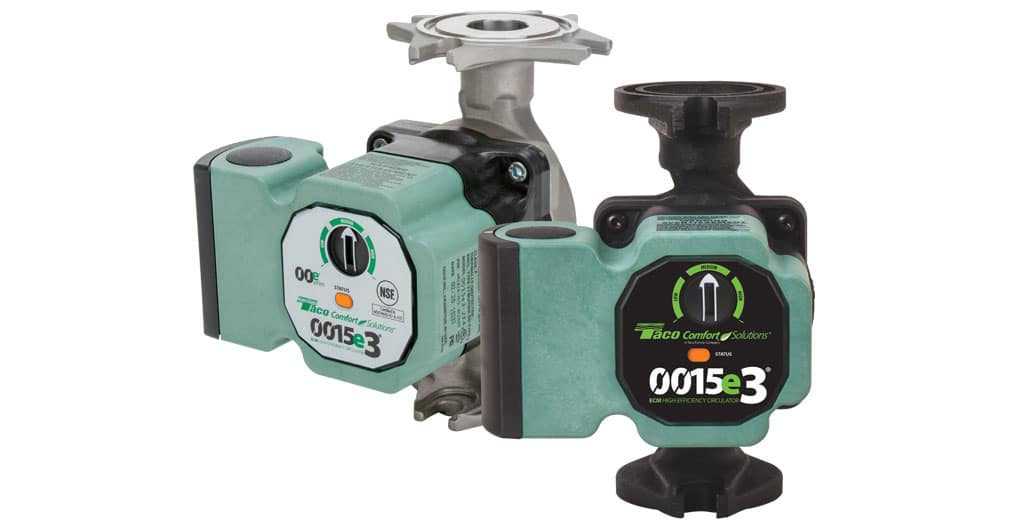

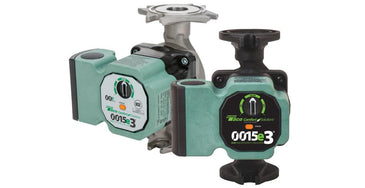

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VM1816-HY2-4C2A00

Jump to: Overview & Specifications Reviews

Overview Details for VM1816-HY2-4C2A00

0015e3 ECM High-Efficiency Circulator

The Taco 0015e3^® ECM High-Efficiency Circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. With 3 easy settings, the 0015e3^® ECM High-Efficiency Circulator delivers performance, reliability and ease of installation that made the 00® famous. Install it, forget it!^®

Performance Data

Flow Range: 0-16 GPM
Head Range (ft): 0-18′
Max. Operating Pressure:
– Cast Iron: 125 psi (8.6 bar)
– Stainless Steel: 150 psi (10 bar)
Max. Water Temp.: 230°F (110°C)
Min. Water Temp.: 36°F (2°C)
Voltage: 120V, 60 Hz Single phase
Max. Operating Power: 44W
Max. AMP Rating: 0.54

Features

BIO Barrier^® protects the pump from system contaminants.(Cast Iron only)
SureStart^®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
High-efficiency ECM motor uses up to 85% less electricity
3 Easy Settings:
• LOW (5 ft. head)
• MEDIUM (10 ft. head)
• HIGH (18 ft. head)
Dual electrical knockouts
6″ stranded wire leads for no-fumble wiring
Double Insulated. No ground necessary.
Integral Flow Check (IFC^®) included
Whisper Quiet Operation

Applications

Closed loop hydronic systems
Open loop potable water
Domestic water recirculation
Indoor use only
Water or maximum of 50% water/glycol solution

Specifications

Item Number	VM1816-HY2-4C2A00
Brand	Taco
Amps	0.54A
Connection	Flanged
HP
Material	Cast Iron
Max Flow	16 GPM
Max Head Pressure	18ft
Max Pressue	125 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump (Variable Speed)
RPM
Series	Series 0015e3
Type	Pump
Voltage	115V
