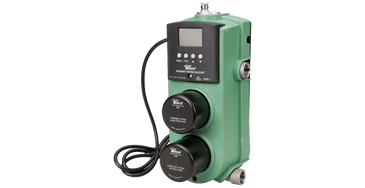

RMB-1 | RADIANT MIXING BLOCK | Taco

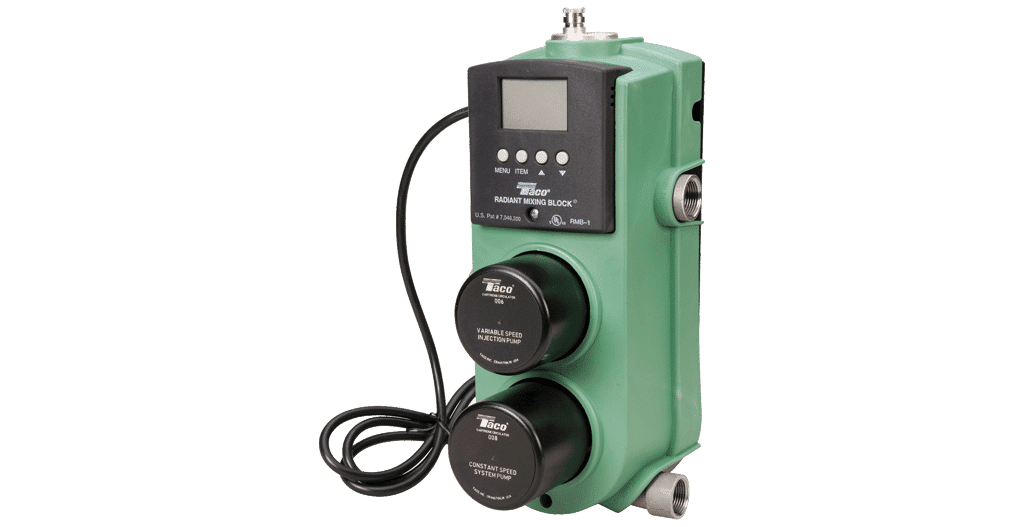

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RMB-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco RMB-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for RMB-1

RADIANT MIXING BLOCK

Radiant Mixing Block

The Taco Radiant Mixing Block ^® is a breakthrough in the design, control, and installation of radiant systems. The RMB-1 is a complete injection mixing system, combining a variable speed injection mixing control, injection circulator, system circulator and air elimination all in a single unit. You get unmatched versatility and performance as a result.

Use as an outdoor reset control, a set-point control or a delta T limiting control.
Requires only four pipe connections for complete installation.
Does not require special piping, balancing valve, closely spaced tees, external control or complex wiring

Performance Data

Flow Range: 0-15.5 GPM
Head Range (ft): 0-15′
HP: 1/40, 1/25
Max. Fluid Temp.: 185°F (85°C)
Min. Fluid Temp.: 32°F (0°C)
Max. Working Pressure: 125 PSI
Connection Size: ¾” NPT

Features

All-in-One Heat Exchanger, Dual-Sided Circulators and Mixing Control Package
Use As Outdoor Reset Control, Setpoint Control or Delta-T Limiting Control
Requires Only Four Pipe Connections for Complete Installation
Doesn’t Require Special Piping, Balancing Valve, Closely Spaced Tees, External Control or Complex Wiring
Plug-In, Low Voltage Connections
Solid Stage Microprocessor
Replaceable Cartridge Design
Maintenance-Free, Wet-Rotor Circulators
Stainless Steel Casing for Open/Closed Systems
Auto Pump Exercise
Adjustable Reset Ratio
Warm Weather Shutdown
Boiler Control or Enable Setting
Boiler Protection
Large LCD Display
Outdoor and 2 Strap-On Sensors Included

Applications

Outdoor Reset Control
Setpoint Control
Delta-T Limiting Control
