L0515-Y6BS1-C7AN | Circulator Pump | Bronze | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Sweat (3/4") | 250 PSI Max Press. | Series LoadMatch | Taco
Documents and manuals
Taco L0515-Y6BS1-C7AN Documents
Overview
Details for L0515-Y6BS1-C7AN
Circulator Pump | Bronze | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Sweat (3/4") | 250 PSI Max Press. | Series LoadMatch

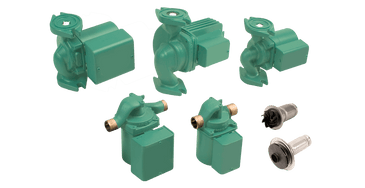

LoadMatch Circulators
Taco LoadMatch ® Circulators are designed for quiet, efficient operation on LoadMatch ® Fan Coil Heating and Cooling Systems. Each circulator includes a removable Integral Flow Check (IFC ®) to prevent gravity flow and reduce installation costs. An anti-condensate baffle prevents the build up of condensate on the motor windings when pumping chilled water. The unique, field serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance-free design of the LoadMatch ® Circulators provides unmatched reliability.
Performance Data
Min. Fluid Temp.: 32º F (0º C)
Max. Fluid Temp. Cast Iron or Stainless Steel: 230º F (110º C)
Max. Fluid Temp. Bronze: 220º F (104º C)
Max. Working Pressure: 200 PSI
Available in 115V, 230V or 277V voltages
Optional 0-10V variable speed control
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged, 3/4″ Sweat
Features
- Integral Flow Check (IFC)–Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service
- Improved Performance vs. In-Line Flow Checks
- Exclusive Anti-Condensate Baffle (ACB)—Protects motor windings against condensate build-up in chilled water systems
- Unique Replaceable Cartridge Design—Field Serviceable
- Unmatched Reliability—Maintenance Free
- Quiet, Efficient Operation
- Direct Drive – Low Power Consumption
- Standard High Capacity Output
- Compact Design
- Self Lubricating
- No Mechanical Seal
Applications
- LoadMatch® Fan Coil Heating and Cooling Systems
Specifications
| Item Number | L0515-Y6BS1-C7AN |
| Brand | Taco |
| Amps | 0.84A |
| Connection | Sweat (3/4") |
| HP | 1/25 HP |
| Material | Bronze |
| Max Flow | |
| Max Head Pressure | |
| Max Pressue | 250 PSI |
| Optional | |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 RPM |
| Series | LoadMatch |
| Type | Pump |
| Voltage | 115V |
