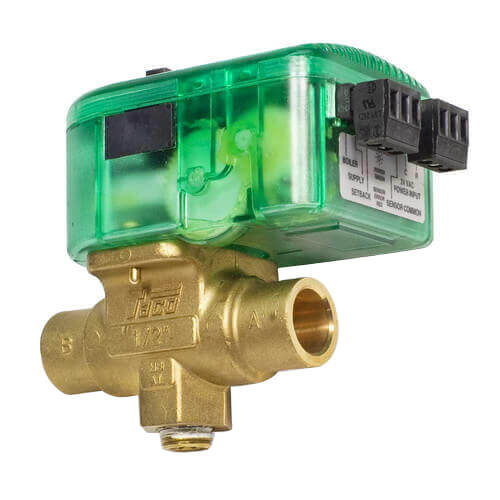

1/2", 2 Way Setpoint I-Series Mixing Valve w/ Sensor
iSeries Mixing Valves
Precise, Cost-Effective Temperature Control for Your Heating Systems
Taco iSeries ® Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in protection against boiler flue gas condensation. Available in 2-way, 3-way or 4-way injection configurations, for either outdoor reset control or fixed water supply temperature applications, and operate off constant power or relay end switch. Features include a ball valve design, High Cv, manual operation button, solid-state microprocessor, multi-status LED indicator light and easy, one-hand actuator removal.
Performance Data
Max. Operating Pressure: 300 psi, (2,100 kPa)
Fluid Temp. Range: 20°F to 240°F (-7°C to 115°C) @ 135°F (57°C) ambient
Ambient Conditions: Indoor Use Only, -22°F to 185°F (-30°C to 85°C), < 90% Non-Condensing Service: Closed Systems, Hot and Chilled Water, up to 50% Glycol
Seat Leakage: Drop-Tight Close Off
Power Supply: 24 VAC ±10% 50/60 HZ
Electrical Rating: 24 VAC, 60 HZ, 0.4 Amps. Do not exceed number of valves per transformer rating. Example: Do not use more than 4 valves per 40VA transformer
Sensors: NTC Thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) β=3892
Features
- 2-way Injection, 3-way or 4-way Mixing
- Operates Off Constant Power or Relay End Switch
- Ball Valve Design, High Cv
- Manual Operation Button
- Solid State Microprocessor Design
- Compact Design
- Easy, One-handed Actuator Removal
- 125 PSI Shutoff Pressure
- Plug-in Low Voltage Connections
- Multi-Status LED Indicator Light
- Fail Safe Mode
- Sensors Included
Applications
- Hot Water Heating Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Hydronic Heating & Cooling
- Water/Glycol concentrations up to 50%
- Solar / Geothermal
Taco iSeries Mixing Valves provide precise and cost-effective temperature control for your heating systems, the flexibility of zone-to-zone control, plus built-in boiler protection.
- For either outdoor reset control or fixed water supply temperature applications
- Protects boiler against flue gas condensation
Features:- Operates Off Constant Power or Relay End Switch
- Ball Valve Design, High Cv
- Manual Operation Button
- Solid-State Microprocessor Design
- Easy, One-Hand Actuator Removal
- Multi-Status LED Indicator Light
- Sensor Included
- Fail Safe Mode
Specifications
| Item Number | I050C2S-2 |
| Brand | Taco |
| Ambient Conditions | Indoor Use Only |
| Amperage | 0.4 |
| Application | Heating |
| Body Pattern | 2-Way |
| Connection Method | Sweat |
| Connection Type | C x C |
| Features | Setpoint |
| Flow Capacity (Cv) | 4.9 |
| Fluid Temperature Range | 20°F to 240°F |
| Height | 3-9/16" |
| Hertz | 60 |
| Max Pressure (PSI) | 300 |
| Max Temp (F) | 150°F |
| Min Temp (F) | 85°F |
| Seat Leakage | Drop-Tight Close Off |
| Sensors | NTC Thermistor |
| Series | iSeries Mixing Valves |
| Size | 1/2" |
| Temperature Range (F) | 85°F - 150°F |
| Type | Mixing Valve |
| Voltage | 24v |
| Width (Inches) | 2-3/8" |
