Overview
Details for CX300-125

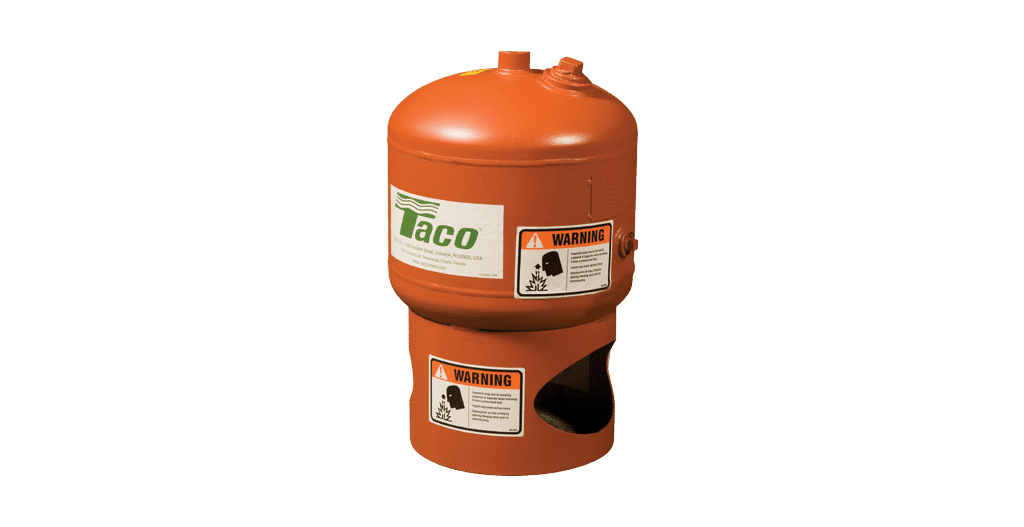

CX EXPANSION TANK 300L (79GAL) 125PSI
Taco partial acceptance Captive Air diaphragm CX Series Expansion Tanks are applied in commercial, institutional and industrial applications for the control of pressure in hydronic systems. Diaphragm tanks use a diaphragm to permanently separate the air and water. In a diaphragm tank the air is held captive by the use of a diaphragm with the expanded water being held on one side of the diaphragm and air on the other.
Taco CX Series Expansion Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the Expansion Tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.
Performance Data
Capacity: 8 – 92 Gal. (30 – 350 liters)
Diameter (in.): 14 – 24
Height (in.): 22 – 60
Features
- Heavy-Duty Butyl Rubber Diaphragm
- “Limited Acceptance”
- Shell: Fabricated Steel, Designed and Constructed per ASME Section VIII Div. 1 Standard Diaphragm: 125 PSIG (862 kPa)
Applications
- Control Pressure in Hydronic Systems— Commercial, Institutional, and Industrial
- Design—For small heating installations and most chilled water applications where smaller air volumes and expanded fluid volumes are needed
Specifications
| Item Number | CX300-125 |
| Brand | Taco |
| Series | CX Expansion Tank |
| Type | Expansion Tank |
