CBX500-125 | CBX EXPANSION TANK 500L (132GAL) 125PSI | Taco (OBSOLETE)

Brand: TacoSKU: CBX500-125

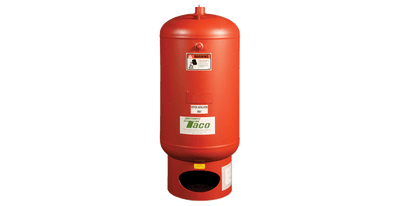

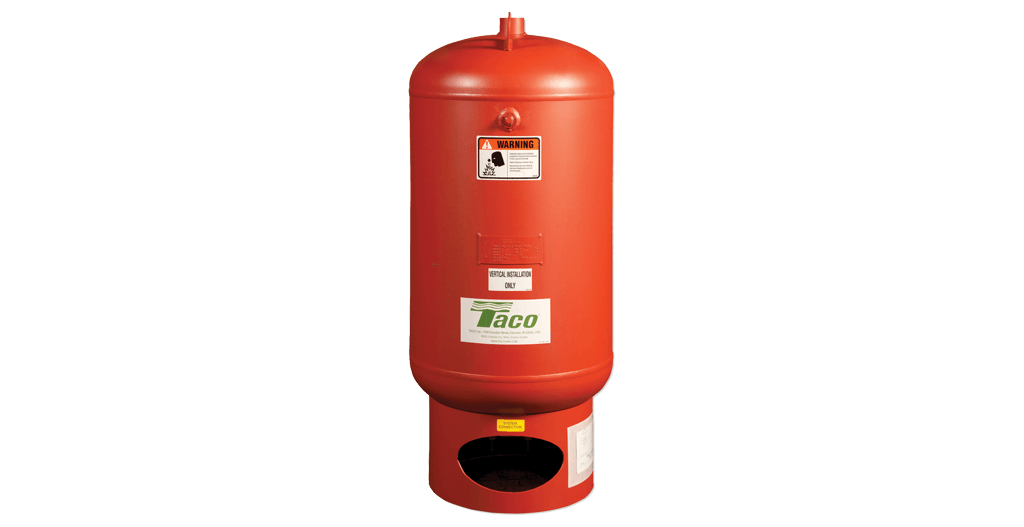

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CBX500-125

Jump to: Overview & Specifications Reviews

Overview Details for CBX500-125

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

CBX EXPANSION TANK 500L (132GAL) 125PSI

For Permanent Separation of Air and Water

Taco CBX Series Expansion Tanks are bladder type tanks that provide permanent separation of air and water. Designed for use in hydronic systems, hydro-pneumatic and draw down applications, they are tough, durable, long-lasting and come in a variety of sizes and capacities to fit your application. They feature a removable heavy-duty Butyl rubber bladder, fabricated steel shell. Each is factory pre-charged to job specifications. Standard bladder: 125 PSIG (862 kPa). Optional bladder: 150 PSIG (1,034 kPa).

Taco CBX Series Expansion Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the expansion tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.

Performance Data

Capacity: 4-212 Gallons (15-800 Liters)
Diameters: 14-30″
Height: 15-86″
Working Pressure: 125,150 (PSI) Higher Pressures Optional
Max. Operating Temp.: 240°F

Features

Designed, constructed and tested to ASME Section VIII, Div. 1 requirements.
Heavy Duty butyl rubber bladder
Partial Acceptance bladder design (field replaceable)
All fabrication done in house
Computerized selections to ensure fast and easy design
National Board Registration
CRN registration (optional)

Applications

Hydronic Expansion Tank
Non-Potable Hydropneumatic and Drawn Down Applications
