Documents: 49MD-200T-2

Datasheet Installation Instructions More Info

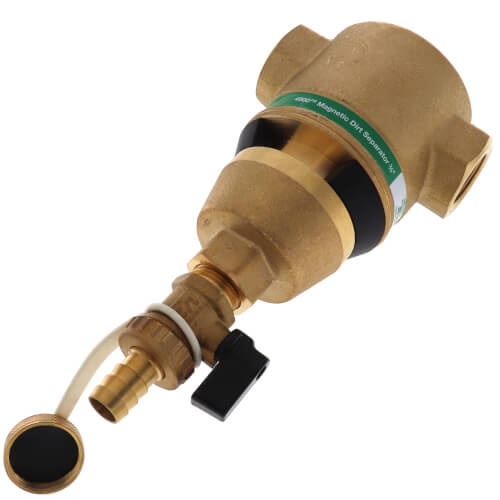

49MD-200T-2 | Separator | Dirt | NPT | 2" | 150 PSI | Bronze | In-Line | Taco

Brand: TacoSKU: 49MD-200T-2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 49MD-200T-2

Jump to: Overview & Specifications Reviews

Overview Details for 49MD-200T-2

Separator | Dirt | NPT | 2" | 150 PSI | Bronze | In-Line

4900 Series Magnetic Dirt Separator

Metallic & Loose Particle Elimination

The Taco 4900 Series ^® Magnetic Dirt Separator increase system life and efficiency by removing ferrous material and other harmful, loose particles from closed loop hydronic heating systems. A powerful, service-free magnetic ring and convenient blow down valve are included for quick and easy system maintenance. The 4900 Series ^® Magnetic Dirt Separator is available with Sweat or NPT connections in sizes ranging from 3/4” – 2”. Longer system life, better performance!

Taco’s 4900 Series™ of magnetic dirt separators increase system life and efficiency byremoving ferrous material and other harmful, loose particles from closed loop hydronicheating systems. A powerful, service-free magnetic ring and convenient blow down valve areincluded for quick and easy system maintenance. Available with Sweat or NPT connections insizes ranging from 3/4” – 2”.

Product Specifications

Housing: Brass
Max. Operating Pressure: 150 psi
Max. Operating Temperature: 240°F
Min. Operating Temperature: 35°F
Max. Velocity: 5 feet/sec
Water or Water/Glycol up to 50% Glycol, Closed Systems

Specifications

Item Number	49MD-200T-2
Brand	Taco
Application	Heating
Connection Method	Threaded
Connection Type	FNPT x FNPT
Fitting	NPT
Flow Capacity (Cv)	71
Material	Brass
Max Pressure (PSI)	150
Max Temp (F)	240°F
Pressure Rating	150PSI
Product Type	Dirt Eliminator
Separator Type	Dirt
Size	2"
Type	Magnetic Dirt Separator
